G(-) = Problem 2 (Problem 7.5-7 from the textbook) 7.5-7. For the system of Fig. P7.5-7, T = 2 s and K:+0.8) (= -1) = -0
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
G(-) = Problem 2 (Problem 7.5-7 from the textbook) 7.5-7. For the system of Fig. P7.5-7, T = 2 s and K:+0.8) (= -1) = -0

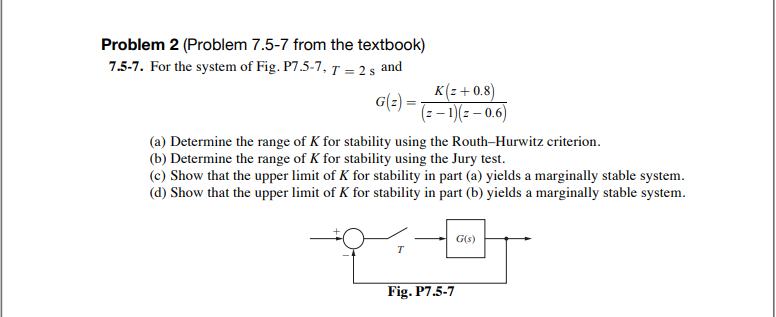

G(-) = Problem 2 (Problem 7.5-7 from the textbook) 7.5-7. For the system of Fig. P7.5-7, T = 2 s and K:+0.8) (= -1) = -0.6) (a) Determine the range of K for stability using the Routh-Hurwitz criterion. (b) Determine the range of K for stability using the Jury test. (c) Show that the upper limit of K for stability in part (a) yields a marginally stable system. (d) Show that the upper limit of K for stability in part (b) yields a marginally stable system. G(s) T Fig. P7.5-7
