QUESTION 2 a) Draw a neat circuit diagram a single-phase full-wave rectifier, connected to a resistive load R. (4 marks

Post by answerhappygod »

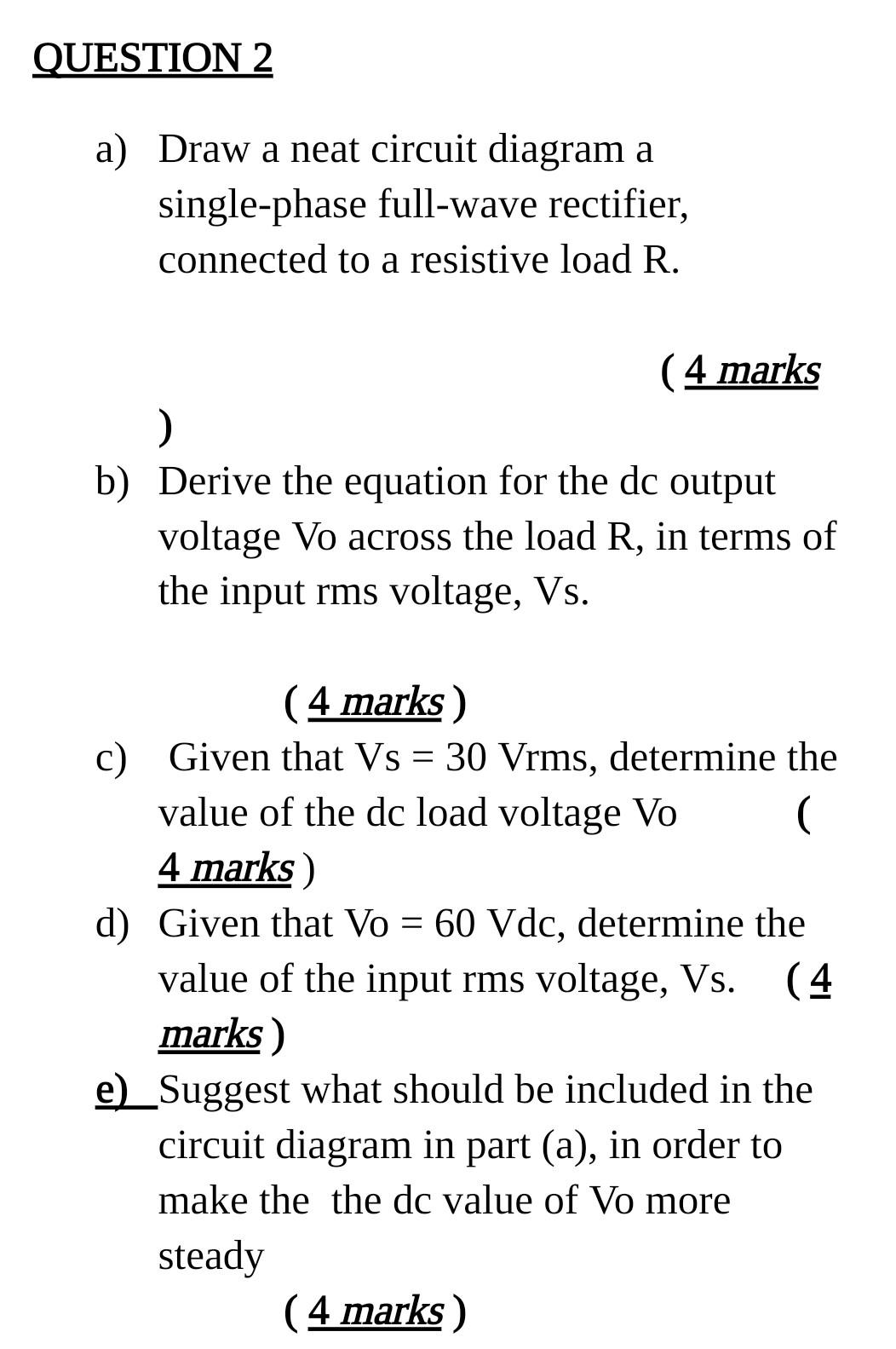

Question 2 A Draw A Neat Circuit Diagram A Single Phase Full Wave Rectifier Connected To A Resistive Load R 4 Marks 1
Question 2 A Draw A Neat Circuit Diagram A Single Phase Full Wave Rectifier Connected To A Resistive Load R 4 Marks 1 (147.83 KiB) Viewed 50 times
QUESTION 2 a) Draw a neat circuit diagram a single-phase full-wave rectifier, connected to a resistive load R. (4 marks ) b) Derive the equation for the dc output voltage Vo across the load R, in terms of the input rms voltage, Vs. - = ( 4 marks) c) Given that Vs = 30 Vrms, determine the value of the dc load voltage Vo ( 4 marks ) d) Given that Vo = 60 Vdc, determine the value of the input rms voltage, Vs. (4 marks ) e)_Suggest what should be included in the circuit diagram in part (a), in order to make the the dc value of Vo more steady ( 4 marks)
