FET BF245 of N channel.

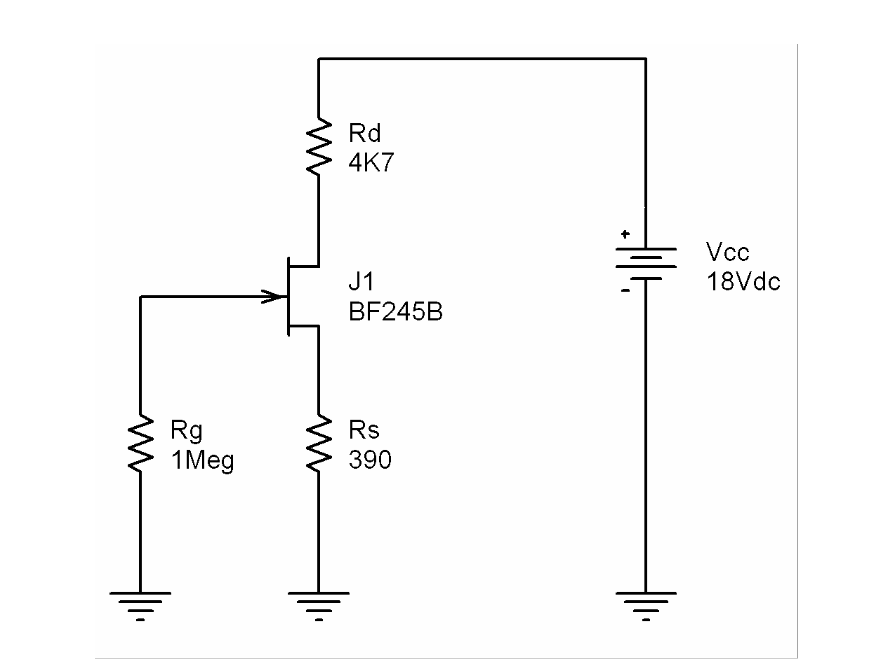

1) Please obtain the next values. Use the following circuit to
obtain them. Please obtain them with
simulation, you can either use Multisim or Tinkercad; but
if you use another one please specify .

Fet Bf245 Of N Channel 1 Please Obtain The Next Values Use The Following Circuit To Obtain Them Please Obtain Them W 1 (23.92 KiB) Viewed 40 times

VALUES: V P ≈ 2.5V IDSS = 10mA. RG = 1MΩ RD = 4K7Ω RS = 390Ω J 1
= BF245 Vcc = 18V.
OBTAIN:

Fet Bf245 Of N Channel 1 Please Obtain The Next Values Use The Following Circuit To Obtain Them Please Obtain Them W 2 (10.38 KiB) Viewed 40 times

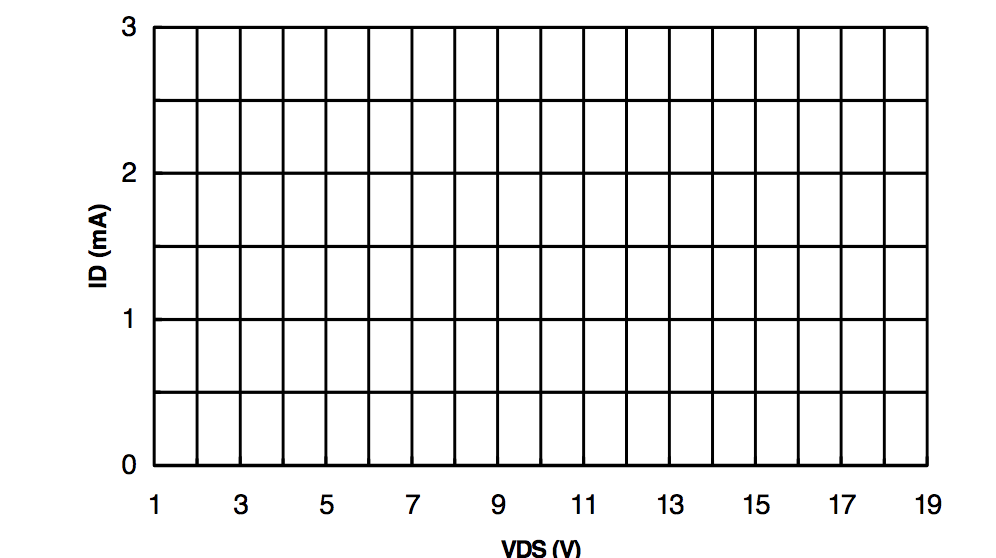

2) With the results obtain the drainer curve under these
circumstances. You can either use excel or another program to do
the curve, specify what program you use please. you can obtain the
result by varying a variable.

Fet Bf245 Of N Channel 1 Please Obtain The Next Values Use The Following Circuit To Obtain Them Please Obtain Them W 3 (26.02 KiB) Viewed 40 times

Thank you and feel free to explain anything for the reader to
understand.
Rd 4K7 Vcc 18Vdc J1 BF245B w Rg 1Meg Rs 390 w

VGS (V) Vs (V) Vos (V) VD (V) Id (mA) IG(UA)

3 2 ID (mA) 0 1 3 5 7 9 11 13 15 17 19 VDS (V)
