6.(20 pts.) The op. amp. in the figure shown below is ideal. Let Ry = 1k 2, R2 = 2kΩ, R3 = 3kΩ, R4= 6kΩ and RF = 6kΩ. =
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
6.(20 pts.) The op. amp. in the figure shown below is ideal. Let Ry = 1k 2, R2 = 2kΩ, R3 = 3kΩ, R4= 6kΩ and RF = 6kΩ. =

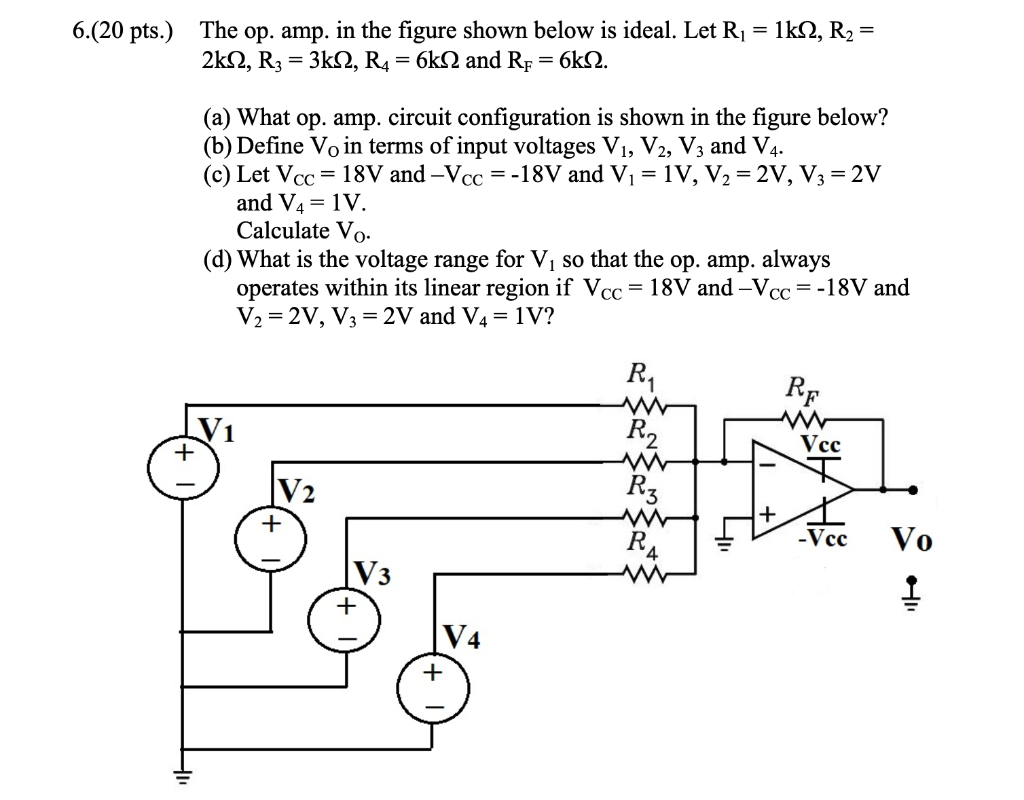

6.(20 pts.) The op. amp. in the figure shown below is ideal. Let Ry = 1k 2, R2 = 2kΩ, R3 = 3kΩ, R4= 6kΩ and RF = 6kΩ. = (a) What op. amp. circuit configuration is shown in the figure below? (b) Define Vo in terms of input voltages V1, V2, V3 and V4. (c) Let Vcc = 18V and -Vcc =-18V and V1 = 1V, V2 = 2V, V3 = 2V and V4 = 1V. Calculate Vo. (d) What is the voltage range for V, so that the op. amp. always operates within its linear region if Vcc = 18V and -Vcc=-18V and V2 = 2V, V3 = 2V and V4 = 1V? = R1 RF R2 + Vcc V2 R3 + R4 -Vcc Vo V3 V4 +
