6. For each of the oscillators shown, determine the frequency of oscillation fosc , the minimum value of R for oscillati

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

6. For each of the oscillators shown, determine the frequency of oscillation fosc , the minimum value of R for oscillati

Post by answerhappygod »

6 For Each Of The Oscillators Shown Determine The Frequency Of Oscillation Fosc The Minimum Value Of R For Oscillati 1
6 For Each Of The Oscillators Shown Determine The Frequency Of Oscillation Fosc The Minimum Value Of R For Oscillati 1 (46.98 KiB) Viewed 60 times

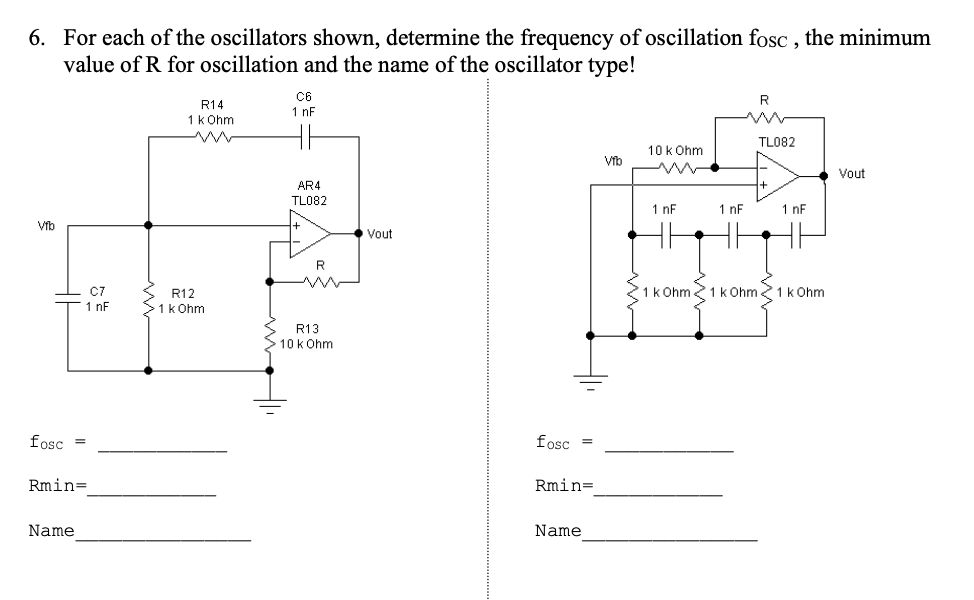

6. For each of the oscillators shown, determine the frequency of oscillation fosc , the minimum value of R for oscillation and the name of the oscillator type! R14 C6 1 nF R 1 k Ohm TL082 10 kOhm Vfb Vout AR4 TL082 1 nF 1 nF 1 nF Vfb Vout R C7 1 nF R12 > 1 kOhm 1 k Ohm 1 k Ohm 1 k Ohm R13 10 kOhm fosc fosc = Rmin= Rmin= Name Name
