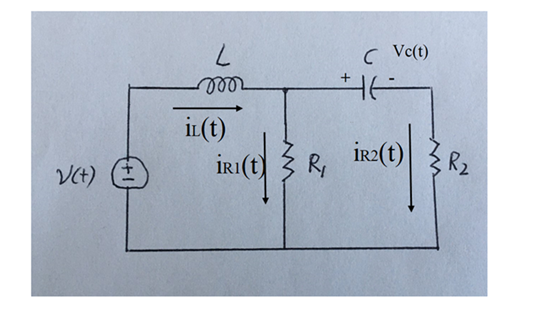

C Ve(t) L 000 + A il(t) irit ir2(t) Ri V(+) R2

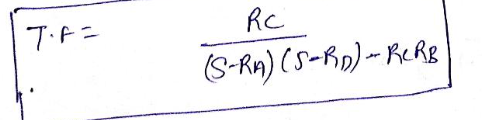

Tofa RC (S-RA) (S=Rp) - ReRB

Step 3: Use transfer function to solve the time responses Vc(t) to the input step function ult) when 1) L=1, C=0.5, R1 = R2 =1; 2) L = 2.5, C=1.5 R1 = R2 = 0.

Step 4: Determine their damping ratios 6 and indicate their time responses properties
