11345V 4) [20pts al Solve V, in the figure shown by Thevenin eq. In your equivalent circuit, you MUST include the entire

Post by answerhappygod »

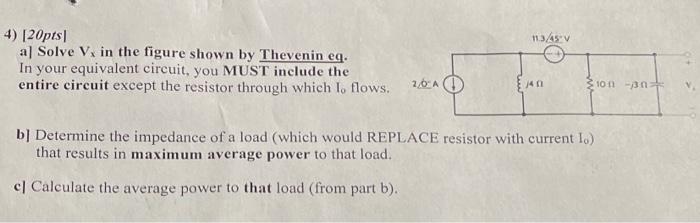

11345v 4 20pts Al Solve V In The Figure Shown By Thevenin Eq In Your Equivalent Circuit You Must Include The Entire 1
11345v 4 20pts Al Solve V In The Figure Shown By Thevenin Eq In Your Equivalent Circuit You Must Include The Entire 1 (22.98 KiB) Viewed 74 times
11345V 4) [20pts al Solve V, in the figure shown by Thevenin eq. In your equivalent circuit, you MUST include the entire circuit except the resistor through which I, flows. 2.00 A 310-30 b) Determine the impedance of a load (which would REPLACE resistor with current lo) that results in maximum average power to that load. c) Calculate the average power to that load from part b).
