The voltage source has V=5.620V The current source has 1=4.720 A Calculate the magnitude of the voltage between a and b using any method of circuit analysis.

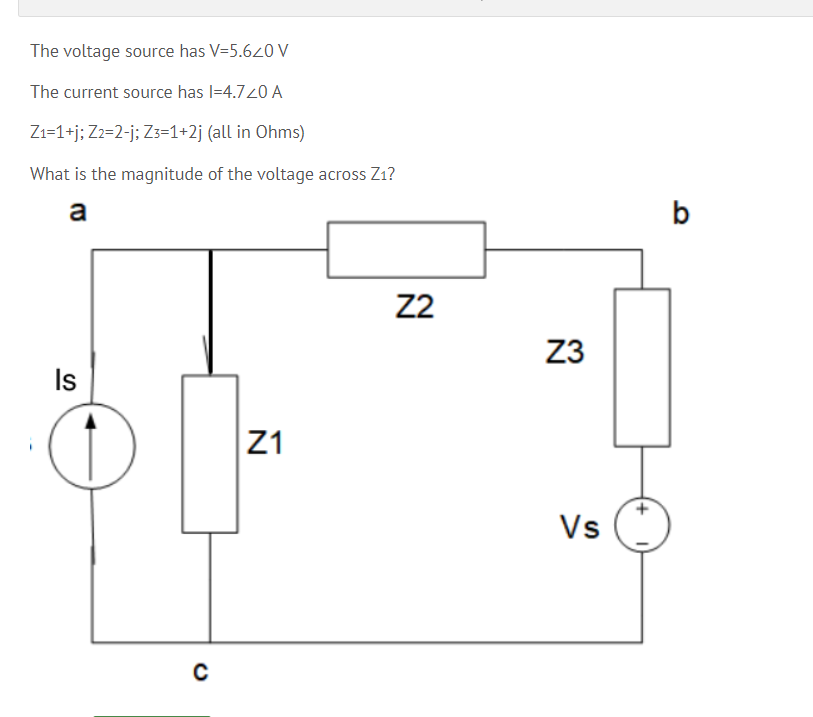

The voltage source has V=5.620 V The current source has 1=4.720 A Z1=1+j; Z2=2-j; Z3=1+2j (all in Ohms) What is the magnitude of the voltage across Z1? a b Z2 Z3 Is i Z1 Vs с
