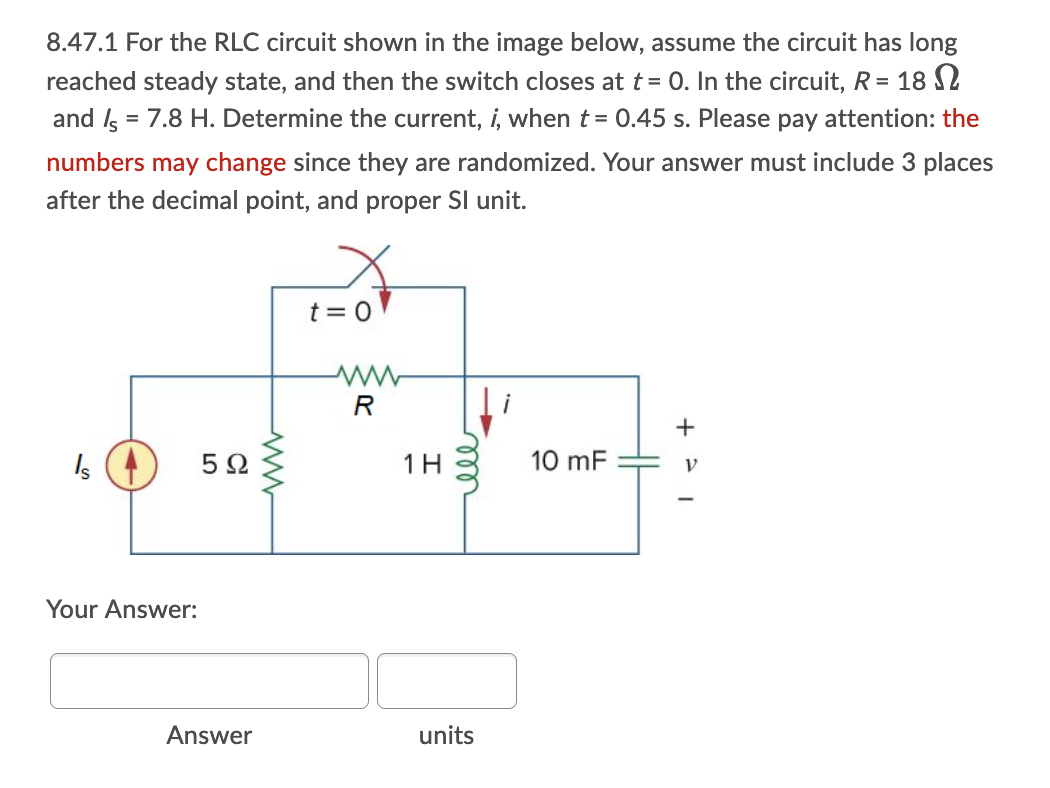

= 8.47.1 For the RLC circuit shown in the image below, assume the circuit has long reached steady state, and then the switch closes at t= 0. In the circuit, R= 18 12 and Is = 7.8 H. Determine the current, i, when t= 0.45 s. Please pay attention: the numbers may change since they are randomized. Your answer must include 3 places after the decimal point, and proper Sl unit. t=0 w R + Is A 5 92 1H 10 mF ע Your Answer: Answer units
8.47.2 For the RLC circuit shown in the image below, assume the circuit has long reached steady state, and then the switch closes at t= 0. In the circuit, R = 20 12 and Is = 7.4 H. Determine the voltage, v, when t = 0.37 s. Please pay attention: the numbers may change since they are randomized. Your answer must include 3 places after the decimal point, and proper Sl unit. t=0 w R + Is A 522 1H ell 10 mF ע Your Answer: Answer units
