1) Sketch the Bode plot for the following transfer function, labeling the break frequencies and power levels in Db. H(W)

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

1) Sketch the Bode plot for the following transfer function, labeling the break frequencies and power levels in Db. H(W)

Post by answerhappygod »

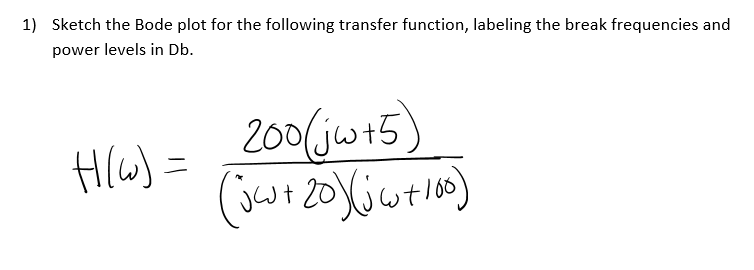

1 Sketch The Bode Plot For The Following Transfer Function Labeling The Break Frequencies And Power Levels In Db H W 1
