The buck converter of Fig. 1 has an input of 50 V and an output of 20V. The switching frequency is 100 kHz, and the outp

Post by answerhappygod »

The Buck Converter Of Fig 1 Has An Input Of 50 V And An Output Of 20v The Switching Frequency Is 100 Khz And The Outp 1
The Buck Converter Of Fig 1 Has An Input Of 50 V And An Output Of 20v The Switching Frequency Is 100 Khz And The Outp 1 (23.14 KiB) Viewed 52 times
Need Help Asap

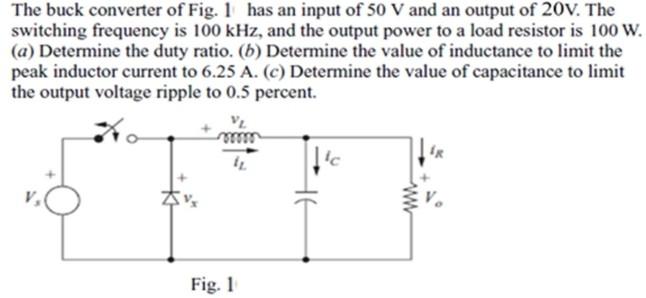

The buck converter of Fig. 1 has an input of 50 V and an output of 20V. The switching frequency is 100 kHz, and the output power to a load resistor is 100 W. (a) Determine the duty ratio. (6) Determine the value of inductance to limit the peak inductor current to 6.25 A. (c) Determine the value of capacitance to limit the output voltage ripple to 0.5 percent. V2 1 ic IR Fig. 1
