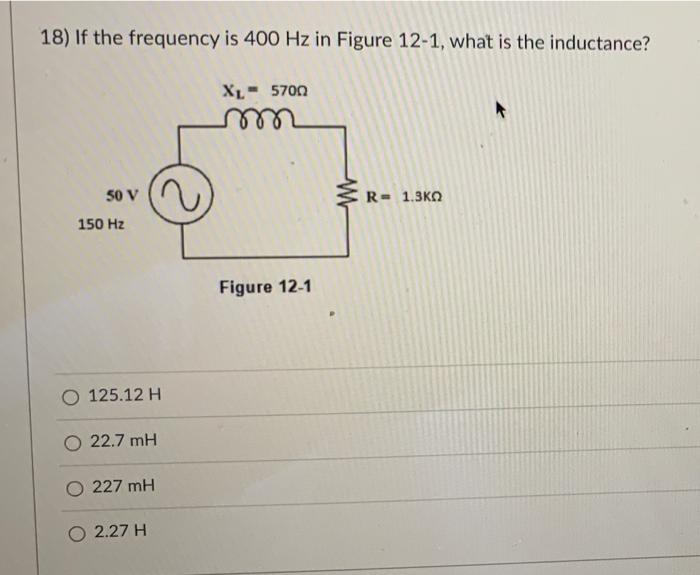

18) If the frequency is 400 Hz in Figure 12-1, what is the inductance? X1 - 5700 50 V W R- 1.3K 150 Hz Figure 12-1 O 125.12 H O 22.7 mH O 227 mH 2.27 H

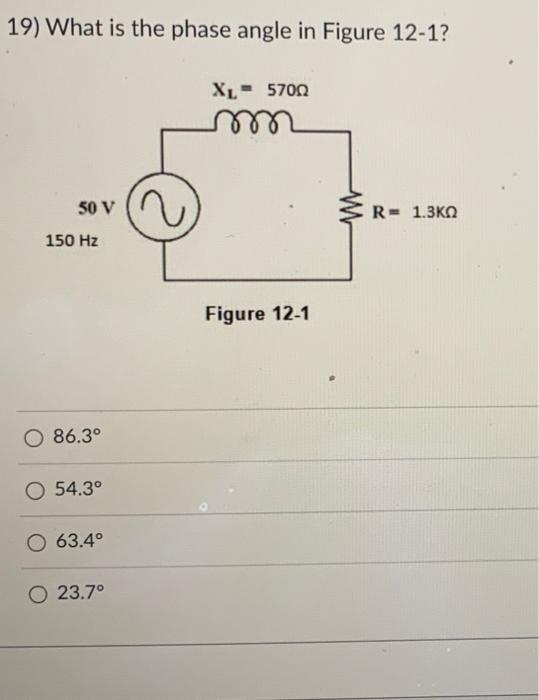

19) What is the phase angle in Figure 12-1? XL - 5700 50 V R= 1.3K 150 Hz Figure 12-1 86.3° O 54.3° 63.4° O 23.7°
