Design a single-stage transistor amplifier with J-FET (N) BF545A for 2 (6 dB) gain and supply voltage 9 V connected as s

Post by answerhappygod »

Design A Single Stage Transistor Amplifier With J Fet N Bf545a For 2 6 Db Gain And Supply Voltage 9 V Connected As S 1
Design A Single Stage Transistor Amplifier With J Fet N Bf545a For 2 6 Db Gain And Supply Voltage 9 V Connected As S 1 (44.02 KiB) Viewed 62 times

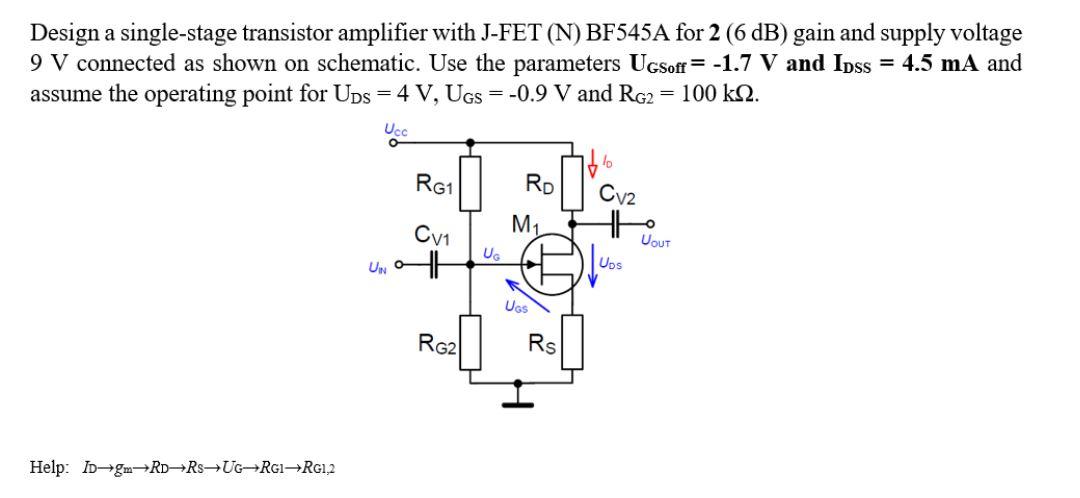

Design a single-stage transistor amplifier with J-FET (N) BF545A for 2 (6 dB) gain and supply voltage 9 V connected as shown on schematic. Use the parameters UGSoft = -1.7 V and Idss = 4.5 mA and assume the operating point for Uds=4 V, UGS = -0.9 V and RG2 = 100 k12. Ucc 10 RG1 RO CV2 Cv1 M1 TH UOUT U. u, CHE Ups Uos RG2 RS Help: ID-mRD-- RUG-RG1R61,2
