- The Gain Margin And Phase Margin Of A System Shown In Figure 2 What Is The Maximum Gain In Unitless Not In Db To Make 1 (22.14 KiB) Viewed 57 times
The gain margin and phase margin of a system shown in Figure 2. What is the maximum gain (in unitless not in db) to make
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
The gain margin and phase margin of a system shown in Figure 2. What is the maximum gain (in unitless not in db) to make

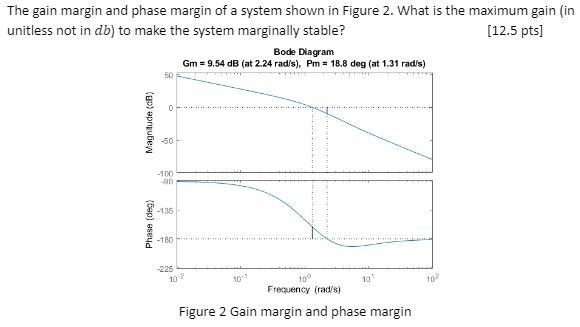

The gain margin and phase margin of a system shown in Figure 2. What is the maximum gain (in unitless not in db) to make the system marginally stable? (12.5 pts] Bode Diagram Gm = 9.54 dB (at 2.24 rad/s), Pm = 18.8 deg (at 1.31 rad's) 50 0 Magnitude (CE) -50 -100 -90 -135 Phase (des) -180 10 225 302 101 100 10 Frequency (rad/s) Figure 2 Gain margin and phase margin
