Chapter 4 Circuit Theorems 140 Using Thevenin's theorem, find the equivalent circuit to the left of the Practice Problem
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
Chapter 4 Circuit Theorems 140 Using Thevenin's theorem, find the equivalent circuit to the left of the Practice Problem

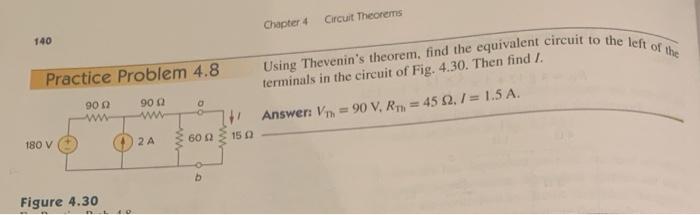

Chapter 4 Circuit Theorems 140 Using Thevenin's theorem, find the equivalent circuit to the left of the Practice Problem 4.8 terminals in the circuit of Fig. 4.30. Then find I. 90Ω 900 w Answer: Vn = 90 V, Rr= 452,7 = 1.5 A. 602 15 180 V 2 A b Figure 4.30
