Problem #7) Given the circuit shown below that contains three push-buttons (Shutdown, Alpha, and Beta), two relays (R an

[answerhappygod]

Problem 7 Given The Circuit Shown Below That Contains Three Push Buttons Shutdown Alpha And Beta Two Relays R An 1 (35.15 KiB) Viewed 53 times

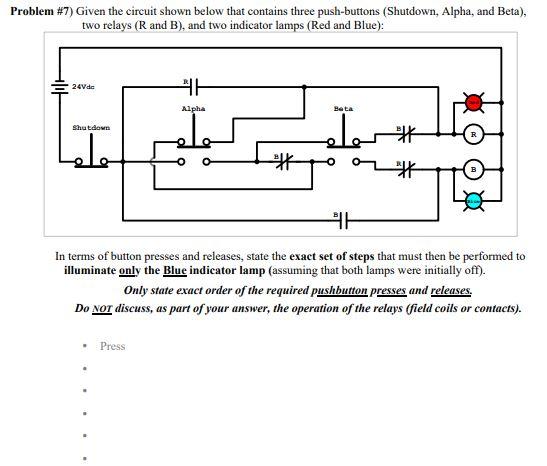

Problem #7) Given the circuit shown below that contains three push-buttons (Shutdown, Alpha, and Beta), two relays (R and B), and two indicator lamps (Red and Blue): 24Vdc AH Alpha Beta Shutdown امام ماما el 91 In terms of button presses and releases, state the exact set of steps that must then be performed to illuminate only the Blue indicator lamp (assuming that both lamps were initially off). Only state exact order of the required pushbutton presses and releases. Do not discuss, as part of your answer, the operation of the relays (field coils or contacts). • Press
