5. [20 pts] Using two binary counters of the type shown below and logic gates, construct a binary counter that counts fr

[answerhappygod]

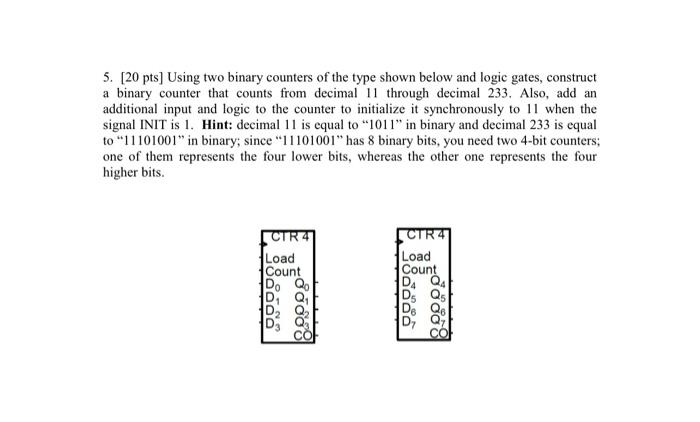

5 20 Pts Using Two Binary Counters Of The Type Shown Below And Logic Gates Construct A Binary Counter That Counts Fr 1 (28.7 KiB) Viewed 70 times

5. [20 pts] Using two binary counters of the type shown below and logic gates, construct a binary counter that counts from decimal 11 through decimal 233. Also, add an additional input and logic to the counter to initialize it synchronously to 11 when the signal INIT is 1. Hint: decimal 11 is equal to 1011" in binary and decimal 233 is equal to "11101001" in binary, since "11101001" has 8 binary bits, you need two 4-bit counters; one of them represents the four lower bits, whereas the other one represents the four higher bits. TCTR4 Load Count Do ao D CTR47 Load Count DA Q4 DS D ooooo 00008
