2. Complete table 1 based on G; and draw root locus of G. From the root locus calculate the range of K that will keep th

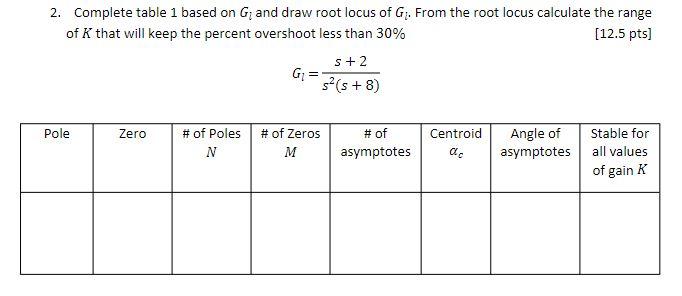

2. Complete table 1 based on G; and draw root locus of G. From the root locus calculate the range of K that will keep the percent overshoot less than 30% [12.5 pts) s + 2 G1 = s-(s + 8) = Pole Zero # of Poles N # of Zeros M # of asymptotes Centroid ac Angle of Stable for asymptotes all values of gain K
