In PSpice, build a band-pass filter with V1= 1V, L = 10mH, C = 0.0254uF and R = 126 ohm, plot the frequency response usi

Post by answerhappygod »

In Pspice Build A Band Pass Filter With V1 1v L 10mh C 0 0254uf And R 126 Ohm Plot The Frequency Response Usi 1
In Pspice Build A Band Pass Filter With V1 1v L 10mh C 0 0254uf And R 126 Ohm Plot The Frequency Response Usi 1 (26.08 KiB) Viewed 44 times
Please only solve if you know what PSpice
is

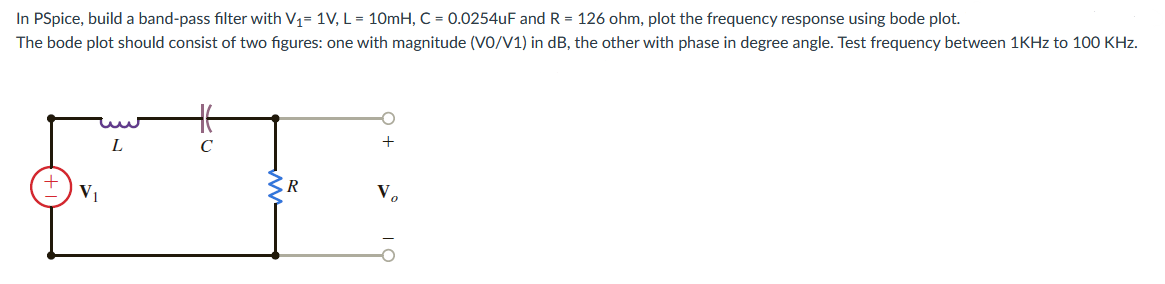

In PSpice, build a band-pass filter with V1= 1V, L = 10mH, C = 0.0254uF and R = 126 ohm, plot the frequency response using bode plot. The bode plot should consist of two figures: one with magnitude (VO/V1) in dB, the other with phase in degree angle. Test frequency between 1KHz to 100 KHz. w He L с + V R V.
