Problem 1 core A 208-V four-pole 60-Hz Y-connected wound-rotor induction motor is rated at 30 hp. Its equivalent circuit

Post by answerhappygod »

Problem 1 Core A 208 V Four Pole 60 Hz Y Connected Wound Rotor Induction Motor Is Rated At 30 Hp Its Equivalent Circuit 1
Problem 1 Core A 208 V Four Pole 60 Hz Y Connected Wound Rotor Induction Motor Is Rated At 30 Hp Its Equivalent Circuit 1 (55.9 KiB) Viewed 41 times

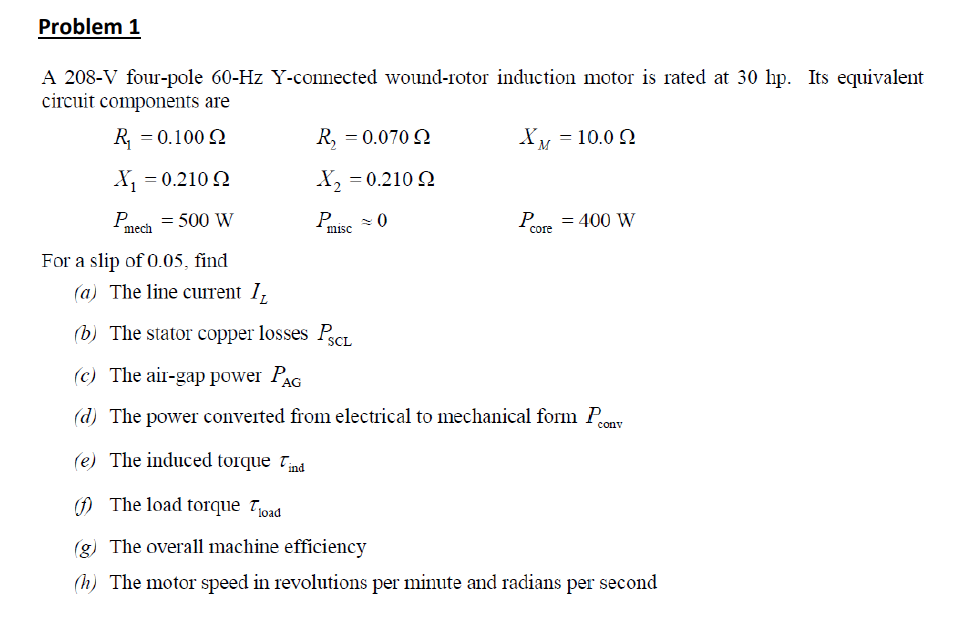

Problem 1 core A 208-V four-pole 60-Hz Y-connected wound-rotor induction motor is rated at 30 hp. Its equivalent circuit components are R = 0.1002 R = 0.07022 X = 10.022 Xı = 0.210.22 X2 = 0.2102 Pmech = 500 W Pmisc = 0 PO = 400 W For a slip of 0.05, find (a) The line current I, (b) The stator copper losses PSCL (c) The air-gap power PAG (d) The power converted from electrical to mechanical form Peony (e) The induced torque tind conv The load torque Tioad (g) The overall machine efficiency (h) The motor speed in revolutions per minute and radians per second
