Hi can someone please assist me with this.
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
Hi can someone please assist me with this.
Hi can someone please assist me with this.

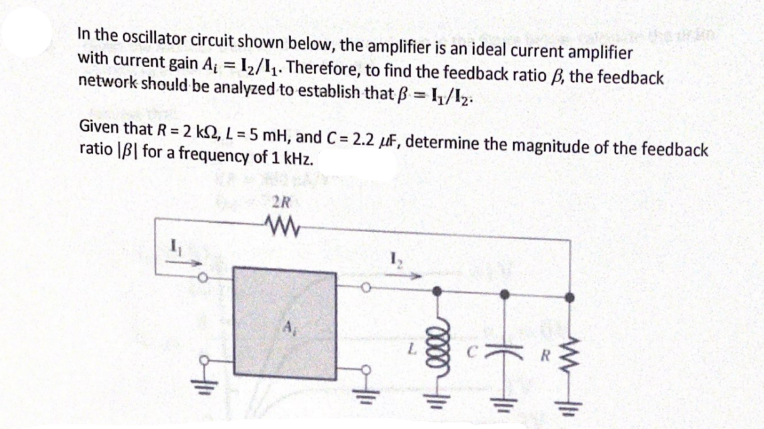

In the oscillator circuit shown below, the amplifier is an ideal current amplifier with current gain A; = 12/14. Therefore, to find the feedback ratio B, the feedback network should be analyzed to establish that B = 11/12. Given that R = 2 k2, L = 5 mH, and C = 2.2 LF, determine the magnitude of the feedback ratio IBI for a frequency of 1 kHz. 2R w A L 1000024 HE
In the oscillator circuit shown below, the amplifier is an ideal current amplifier with current gain A; = 12/14. Therefore, to find the feedback ratio B, the feedback network should be analyzed to establish that B = 11/12. Given that R = 2 k2, L = 5 mH, and C = 2.2 LF, determine the magnitude of the feedback ratio IBI for a frequency of 1 kHz. 2R w A L 1000024 HE
