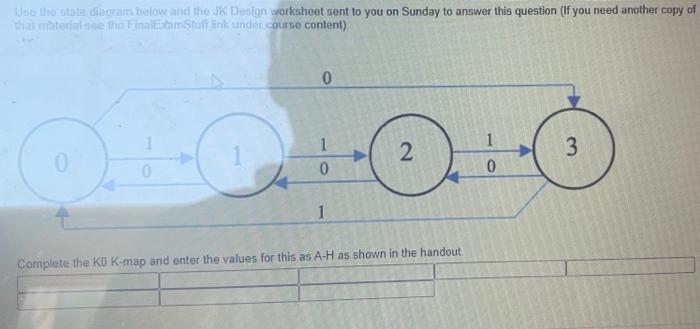

Use the state diagram below and the Uk Design worksheet sent to you on Sunday to answer this question (If you need another copy of that material soe the Fal Exam Stui link under course content) 0 1 1 0 2 3 0 0 1 Complete the Ko K-map and enter the values for this as A-H as shown in the handout

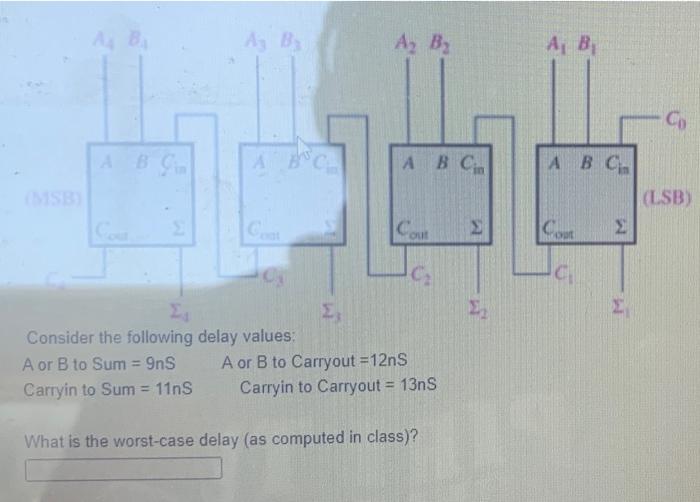

A B Az By A Bi Co ABC A B Cin A B C (LSB) Σ Con Σ C Σ Σ Consider the following delay values: A or B to Sum = 9nS A or B to Carryout =12nS Carryin to Sum = 11ns Carryin to Carryout = 13nS What is the worst-case delay (as computed in class)?

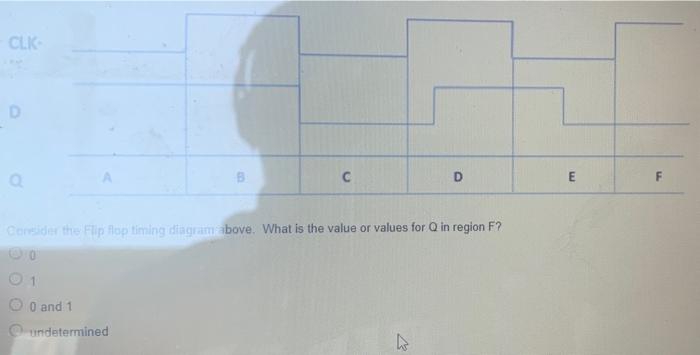

CLK С D E F Coneider the Flip flop timing diagram above. What is the value or values for Q in region F? DO 0 1 0 and 1 undetermined v
