Question 9 10 Points Save Answ Clk K Q A B C D E F Consider The Jk Flip Flop Waveform Above What Is The Value Or Value 1 (39.03 KiB) Viewed 22 times

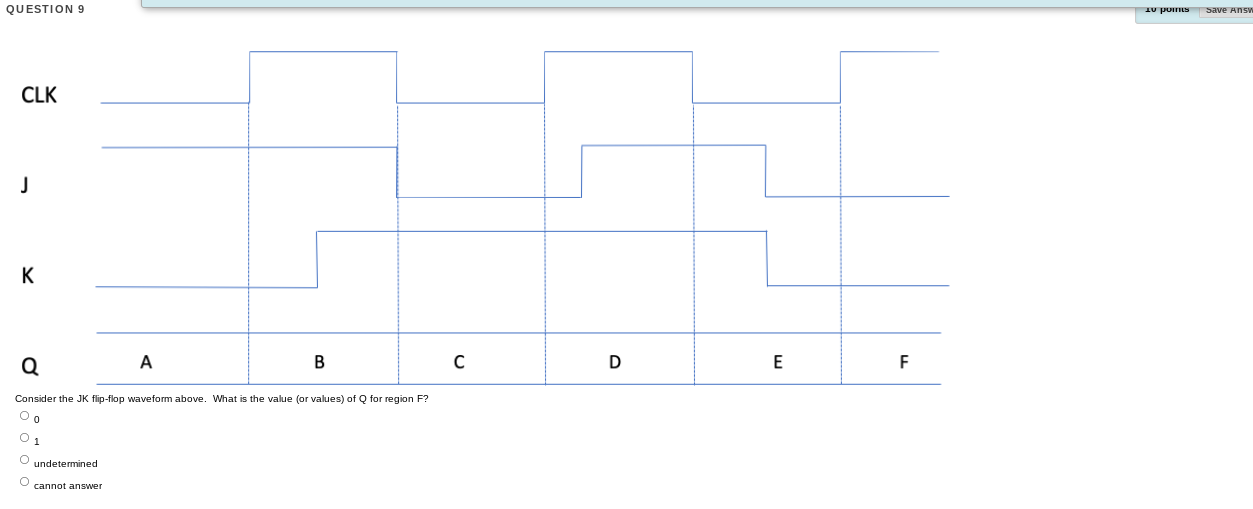

QUESTION 9 10 points Save Answ CLK K Q A B C D E F Consider the JK flip-flop waveform above. What is the value (or values) of Q for region F? Oo 0 1 undetermined O cannot answer
QUESTION 19 10 points CLK D Q A B с D E F Consider the latch timing diagram above. What is the value or values for Q in region C? 01 O 0 and 1 O undetermined
QUESTION 20 10 points CLK D Q A B C D E F Consider the Flip flop timing diagram above. What is the value or values for Q in region A? OO O 1 0 0 and 1 undetermined
QUESTION 1 10 points CLK D Q A B С D E F Consider the latch timing diagram above. What is the value or values for Q in region A? Oo 01 O and 1 undetermined
