#4 – Differential Amplifiers +12 V 13 kΩ 13 k12 For the differential amplifier shown to the left, the MOSFETs are identi
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
#4 – Differential Amplifiers +12 V 13 kΩ 13 k12 For the differential amplifier shown to the left, the MOSFETs are identi

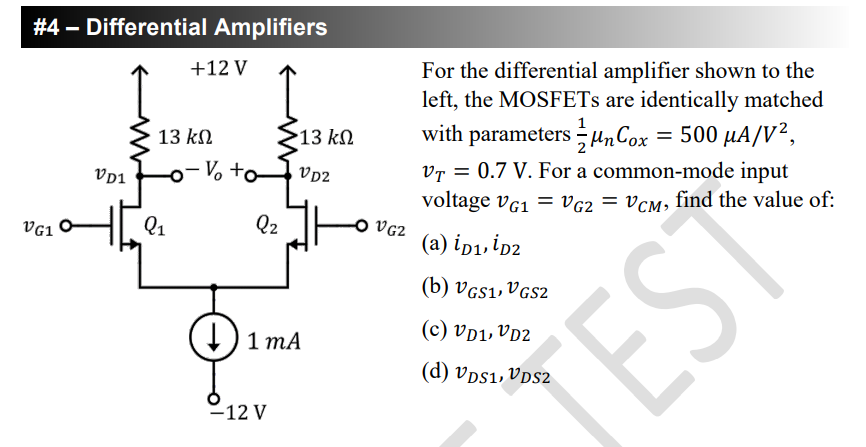

#4 – Differential Amplifiers +12 V 13 kΩ 13 k12 For the differential amplifier shown to the left, the MOSFETs are identically matched with parametersī un Cox = 500 JA/V2, uA Vj = 0.7 V. For a common-mode input voltage VG1 = VG2 = Vcm, find the value of: = Vp1 -o-Vota VD2 = VG1 O 45 Q1 Q2 O VG2 (a) ip1, ip2 (b) VGS1, VGS2 TEST (1) 1mA (C) VD1, VD2 1 (d) VdS1, VDS2 - 12 V
