#3-Current Mirrors +5 V For the MOS current mirror shown on the left, the MOSFETs have the same threshold voltage т VI =

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

#3-Current Mirrors +5 V For the MOS current mirror shown on the left, the MOSFETs have the same threshold voltage т VI =

Post by answerhappygod »

1
1 (106.55 KiB) Viewed 35 times

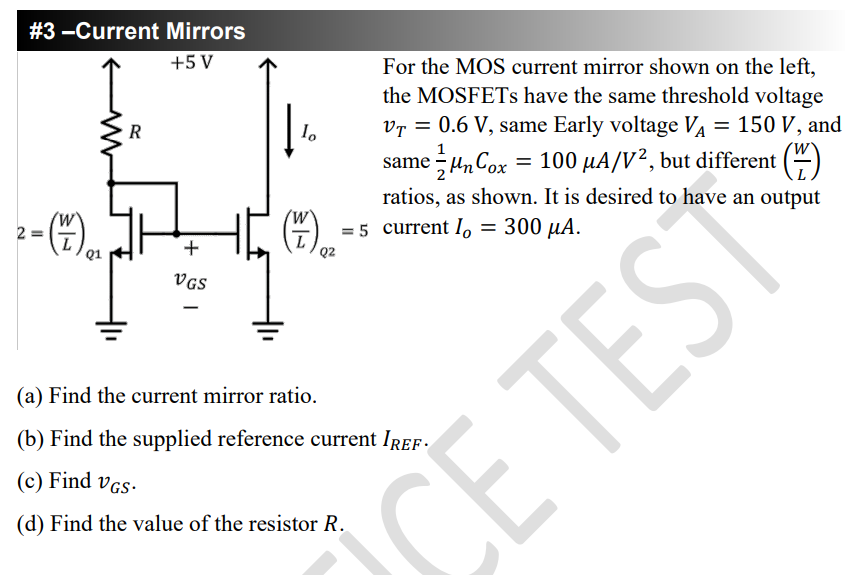

#3-Current Mirrors +5 V For the MOS current mirror shown on the left, the MOSFETs have the same threshold voltage т VI = 0.6 V, same Early voltage VA = 150 V, and = R 1. same į un Cox = 100 4A/V2, but different (6) = = 2-6) () JH ratios, as shown. It is desired to have an output = 5 current 1. 300 μΑ. Q2 2 (%). Q1 + VGS TEST (a) Find the current mirror ratio. (b) Find the supplied reference current Iref. (c) Find vgs. (d) Find the value of the resistor R. E SE
