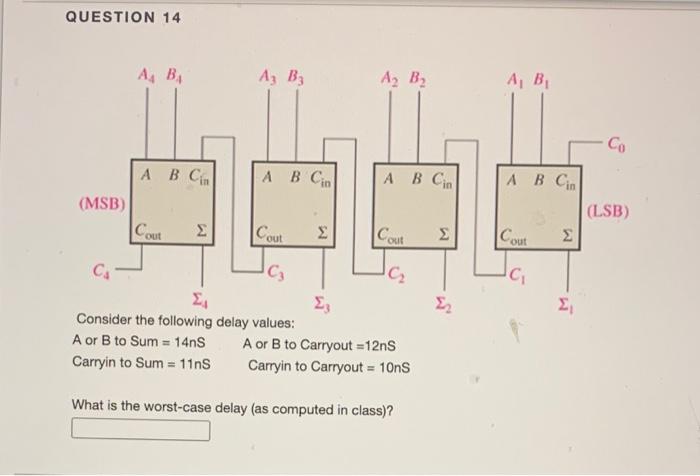

QUESTION 14 А. В. A, B₃ A₂ B₂ A, BI Со A B Cin A B Cin A B Cin | A B Cin (MSB) (LSB) Con Σ Cout Σ Coun Cout Σ C 2) M CA Σ Consider the following delay values: A or B to Sum = 14ns A or B to Carryout=12nS Carryin to Sum = 11ns Carryin to carryout = 10nS What is the worst-case delay (as computed in class)?

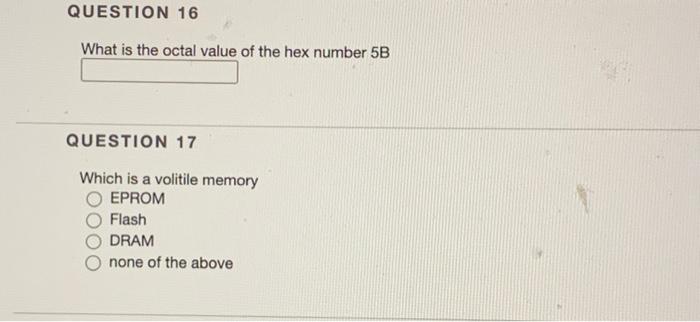

QUESTION 16 What is the octal value of the hex number 5B QUESTION 17 Which is a volitile memory EPROM Flash DRAM none of the above
