3) The length of two parallel transmission lines is L, the radius of the conductor is r, the distance between the two co

Post by answerhappygod »

3 The Length Of Two Parallel Transmission Lines Is L The Radius Of The Conductor Is R The Distance Between The Two Co 1
3 The Length Of Two Parallel Transmission Lines Is L The Radius Of The Conductor Is R The Distance Between The Two Co 1 (20.12 KiB) Viewed 59 times

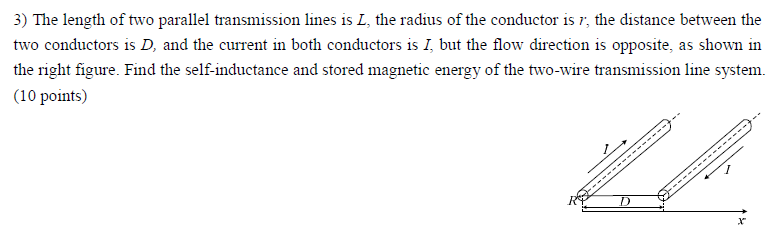

3) The length of two parallel transmission lines is L, the radius of the conductor is r, the distance between the two conductors is D, and the current in both conductors is I, but the flow direction is opposite, as shown in the right figure. Find the self-inductance and stored magnetic energy of the two-wire transmission line system. (10 points)
