7. (8) A4 bit adder is shown below. It produces the sum (S) of two 4-bit numbers (x and y). Design a circuit that produc

[answerhappygod]

7 8 A4 Bit Adder Is Shown Below It Produces The Sum S Of Two 4 Bit Numbers X And Y Design A Circuit That Produc 1 (73.62 KiB) Viewed 23 times

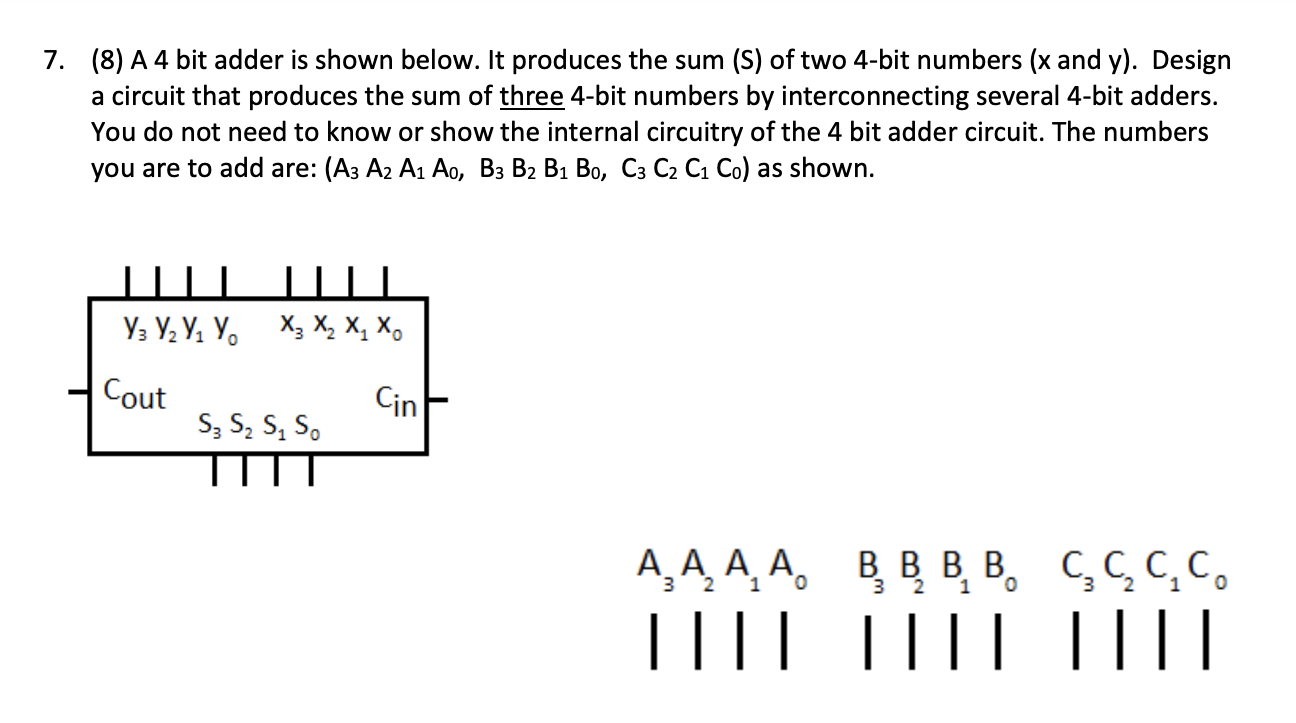

7. (8) A4 bit adder is shown below. It produces the sum (S) of two 4-bit numbers (x and y). Design a circuit that produces the sum of three 4-bit numbers by interconnecting several 4-bit adders. You do not need to know or show the internal circuitry of the 4 bit adder circuit. The numbers you are to add are: (A3 A2 Aj Ao, B3 B2 B1 Bo, C3 C2 C1 Co) as shown. Y3 Y2Y, Y. x, x, x, xo Cout Cin S3 S2 S, S. IIIT 1 3 2 1 ĄĄĄ A. BBBB. CCCC Α,ΑΑ,Α, |||| |||||||
