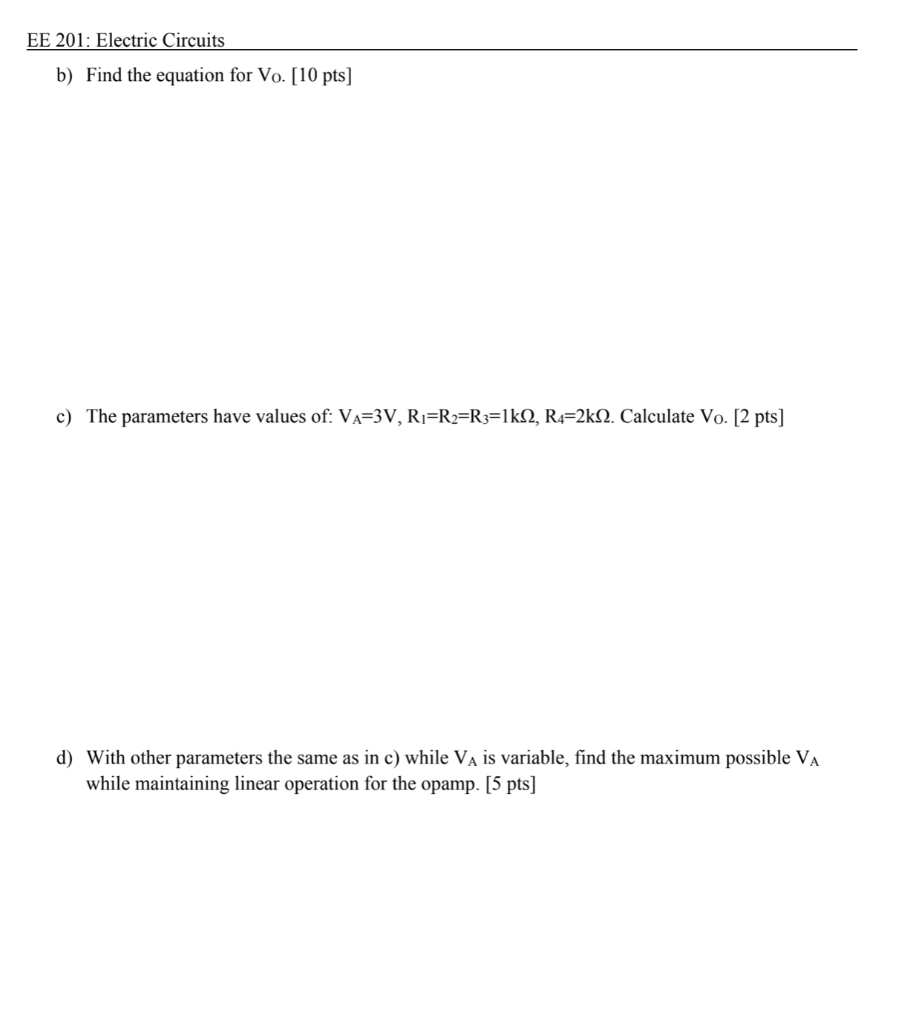

EE 201: Electric Circuits b) Find the equation for Vo. [10 pts] c) The parameters have values of: VA=3V, Ri=R2=R3=1k12, R4=2k1. Calculate Vo. [2 pts] d) With other parameters the same as in c) while Va is variable, find the maximum possible VA while maintaining linear operation for the opamp. [5 pts]
Problem 2: Op-amp circuits (20 pts) R1 VA R2 R3 mm Vp +5V + Vo |VN -5V R4 For the above circuits, assume ideal Opamp and linear operation. The values of all elements: VA, VB, Rı, R2, R3, Ry are known. Vcc=5V, -Vcc=-5V. a) Find the voltage equation for Vp. [3 pts] 2
