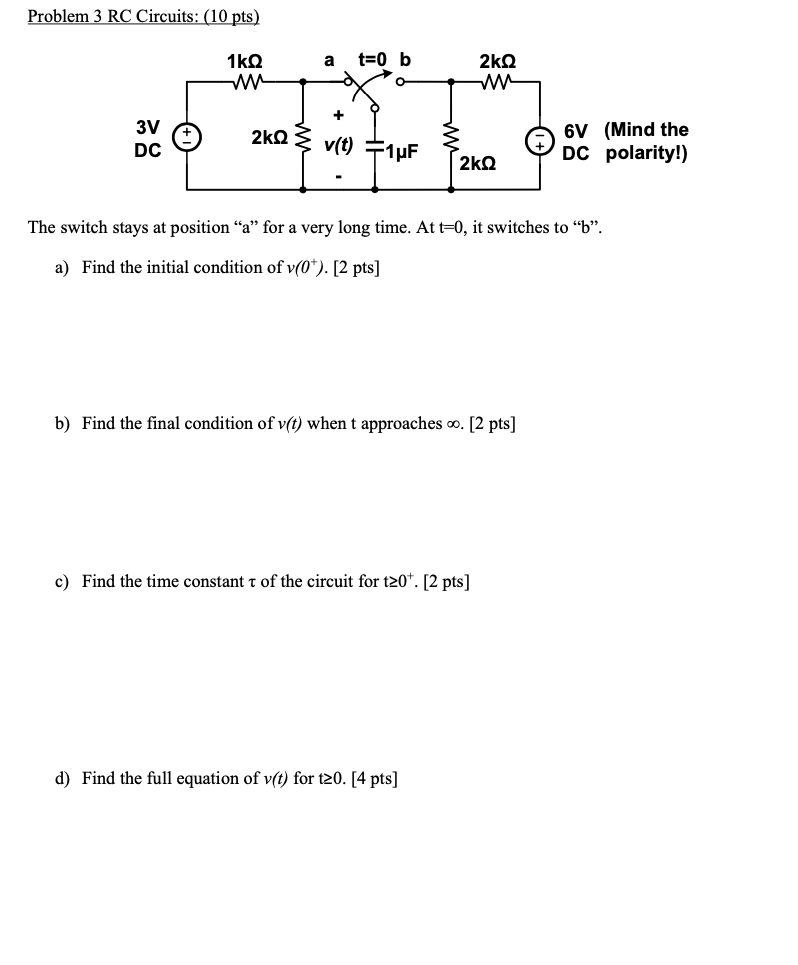

Problem 3 RC Circuits: (10 pts) 1kΩ a t=0b 2k 2 w + 3V DC 2kΩ v(t) 1uF 6V (Mind the DC polarity!) 2kΩ The switch stays at position "a" for a very long time. At t=0, it switches to "b". a) Find the initial condition of v(0*). [2 pts] b) Find the final condition of v(t) when t approaches oo. [2 pts] c) Find the time constant t of the circuit for t207. [2 pts] d) Find the full equation of v(t) for t20. [4 pts]
