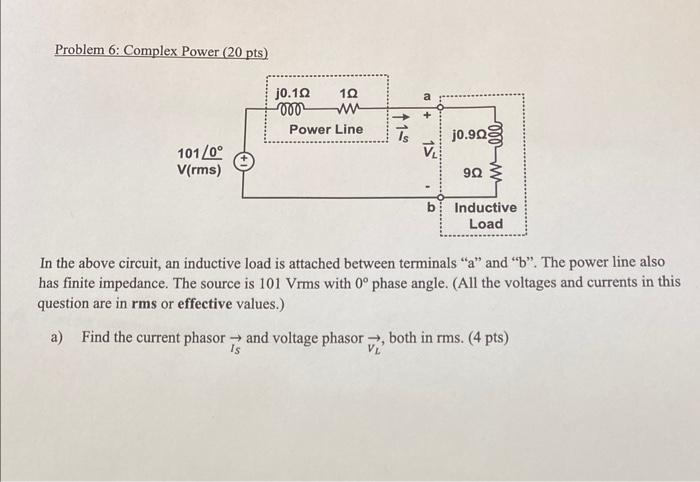

Problem 6: Complex Power (20 pts) j0.12 10 000 w Power Line + j0.9 צ1 101/0° Virms) 90 b Inductive Load In the above circuit, an inductive load is attached between terminals “a” and “b”. The power line also has finite impedance. The source is 101 Vrms with 0° phase angle. (All the voltages and currents in this question are in rms or effective values.) a) Find the current phasor – and voltage phasor ), both in rms. (4 pts) Is V

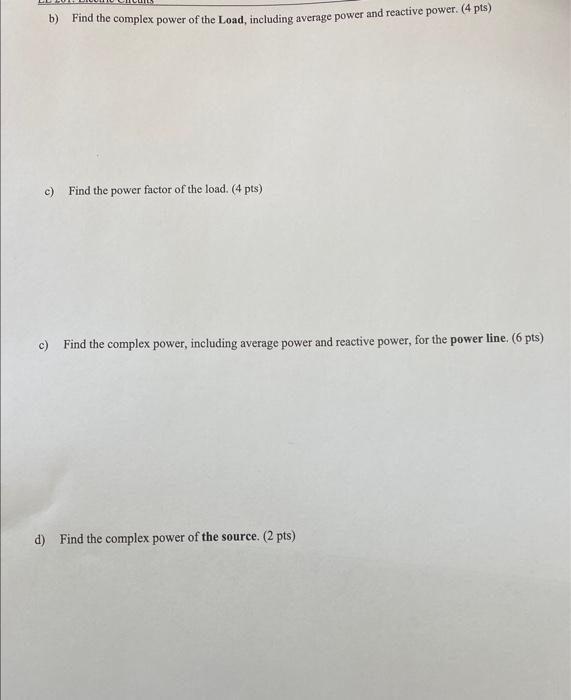

b) Find the complex power of the Load, including average power and reactive power. (4 pts) c) Find the power factor of the load. (4 pts) c) Find the complex power, including average power and reactive power, for the power line. (6 pts) d) Find the complex power of the source. (2 pts)
