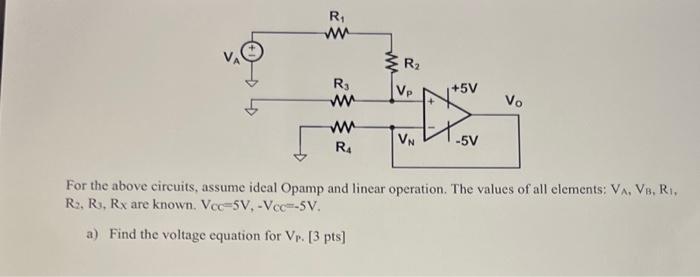

R VA & R₂ Vp +5V Vo R w w R4 VN -5V For the above circuits, assume ideal Opamp and linear operation. The values of all elements: VA VB.R. R3, R1, Rx are known. Vcc=5V. -Vcc -5V. a) Find the voltage equation for Vp [3 pts)

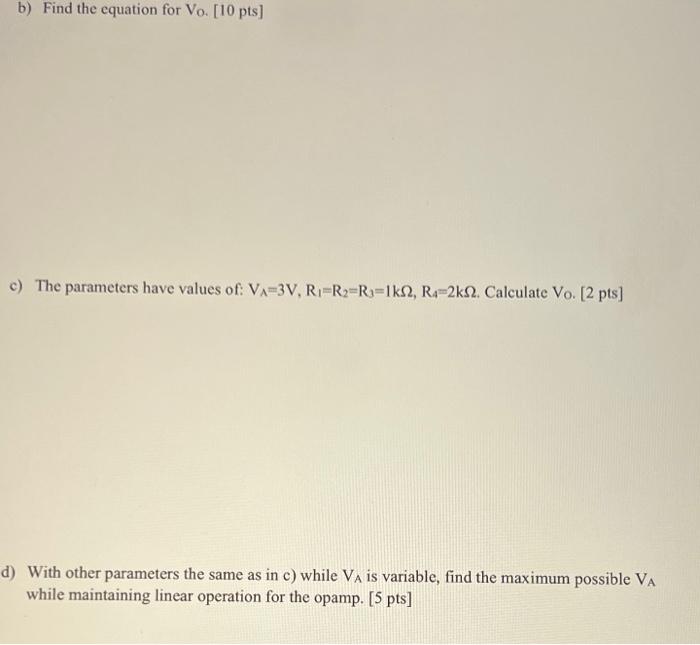

b) Find the equation for Vo. [10 pts] c) The parameters have values of: VA=3V, R.-R2=Rs=1k12, Ra2k12. Calculate Vo. [2 pts] d) With other parameters the same as in c) while VA is variable, find the maximum possible VA while maintaining linear operation for the opamp. [5 pts]
