1. Solve for characteristic eqn ==> s^2 + 1/RC s + 1/LC
= 0
2. evaluate v(0) or i(0)
3. take the derivative of Vn(t) or in(t) and then evaluate t =
0
Use Identical Roots, Distinct Roots or Identical Roots equations
and/or 2nd order Differential Equation for when f(t) cant equal 0 ,
f(t)/LC

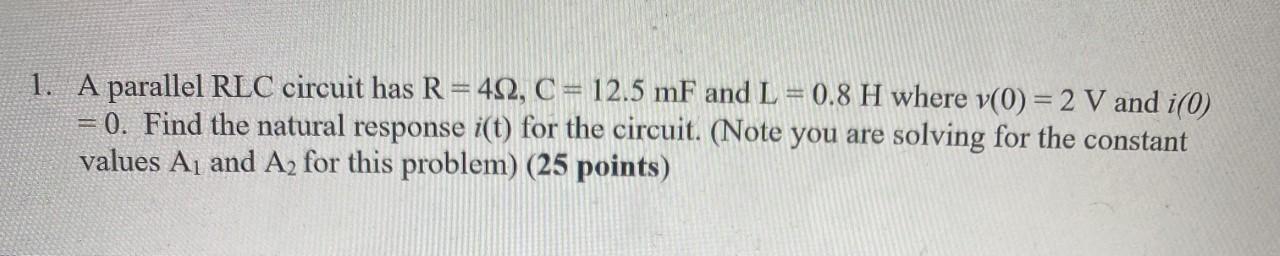

1. A parallel RLC circuit has R=412, C = 12.5 mF and L = 0.8 H where v(0)=2 V and i(0) = 0. Find the natural response i(t) for the circuit. (Note you are solving for the constant values Aį and Afor this problem) (25 points)
