1. Draw the circuit in phasor domain 2. Write equivalent impedance as seen by the current source, 3. Determine phasor fo

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

1. Draw the circuit in phasor domain 2. Write equivalent impedance as seen by the current source, 3. Determine phasor fo

Post by answerhappygod »

1 Draw The Circuit In Phasor Domain 2 Write Equivalent Impedance As Seen By The Current Source 3 Determine Phasor Fo 1
1 Draw The Circuit In Phasor Domain 2 Write Equivalent Impedance As Seen By The Current Source 3 Determine Phasor Fo 1 (54.39 KiB) Viewed 33 times

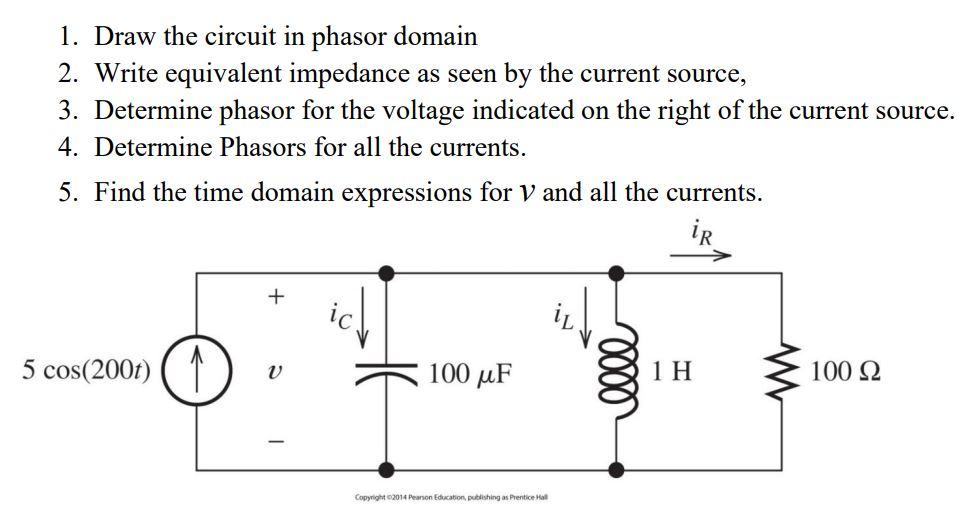

1. Draw the circuit in phasor domain 2. Write equivalent impedance as seen by the current source, 3. Determine phasor for the voltage indicated on the right of the current source. 4. Determine Phasors for all the currents. 5. Find the time domain expressions for V and all the currents. ir + 5 cos(200t) V 100 uF elll 1H w 100 12 Copyright 2014 Pearson Education, publishing as Prentice Hall
