R2 W 10k C1 R1 w 1ko 1000F Vout Vin 3. Consider the following active first-order highpass filter circuit with cutoff fre

[answerhappygod]

R2 W 10k C1 R1 W 1ko 1000f Vout Vin 3 Consider The Following Active First Order Highpass Filter Circuit With Cutoff Fre 1 (31.78 KiB) Viewed 51 times

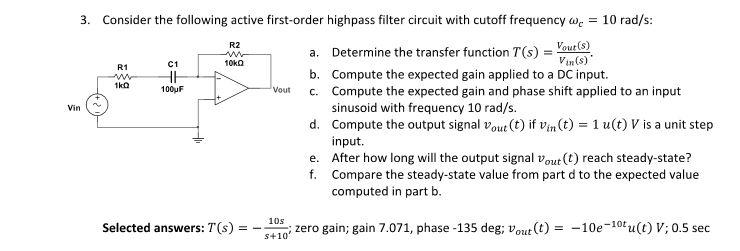

R2 W 10k C1 R1 w 1ko 1000F Vout Vin 3. Consider the following active first-order highpass filter circuit with cutoff frequency we = 10 rad/s: a. Determine the transfer function T (5) Vout(s) Vin(s) HE b. Compute the expected gain applied to a DC input. c. Compute the expected gain and phase shift applied to an input sinusoid with frequency 10 rad/s. d. Compute the output signal Vout(t) if Vin(t) = 1 u(t) V is a unit step input e. After how long will the output signal Voutreach steady-state? f. Compare the steady-state value from part d to the expected value computed in part b. 10s Selected answers: T(s) = : zero gain; gain 7.071, phase -135 deg; Vout(t) = -10e-101u(t) V; 0.5 sec S+10'
