it) R1 2. Consider the following series RLC circuit, with a second resistor in parallel with the capacitor: a. Determine

Post by answerhappygod »

It R1 2 Consider The Following Series Rlc Circuit With A Second Resistor In Parallel With The Capacitor A Determine 1
It R1 2 Consider The Following Series Rlc Circuit With A Second Resistor In Parallel With The Capacitor A Determine 1 (16.16 KiB) Viewed 38 times

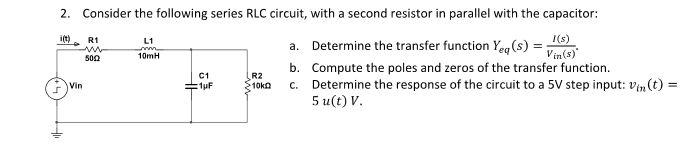

it) R1 2. Consider the following series RLC circuit, with a second resistor in parallel with the capacitor: a. Determine the transfer function Yºg(s) = Venlo) I(s) b. Compute the poles and zeros of the transfer function. c. Determine the response of the circuit to a 5V step input: Vin(t) = 5 u(t) V. L1 www 10mH 500 C1 F R2 100 Vin
