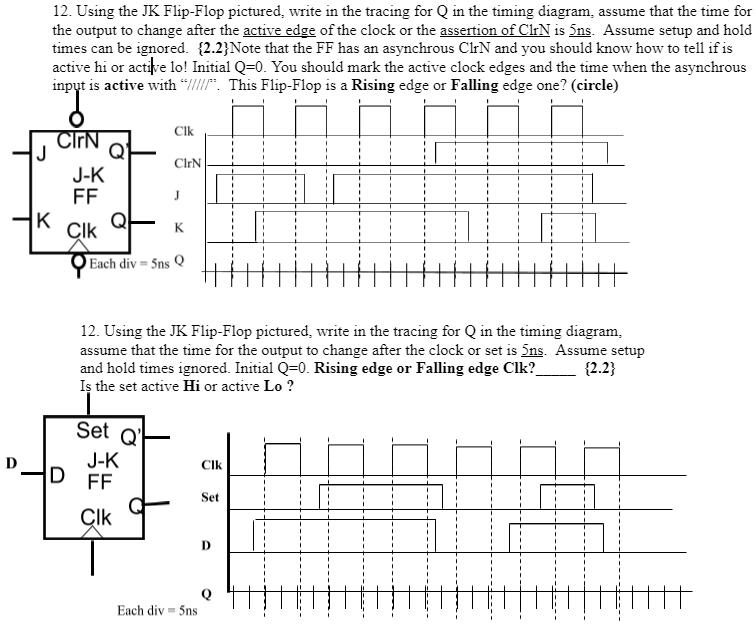

- 12 Using The Jk Flip Flop Pictured Write In The Tracing For Q In The Timing Diagram Assume That The Time For The Outp 1 (64.21 KiB) Viewed 46 times
give thumbs up!
12. Using the JK Flip-Flop pictured, write in the tracing for Q in the timing diagram, assume that the time for the output to change after the active edge of the clock or the assertion of CliN is Ins. Assume setup and hold times can be ignored. {2.2}Note that the FF has an asynchrous CliN and you should know how to tell if is active hi or active lo! Initial Q=0. You should mark the active clock edges and the time when the asynchrous inpyt is active with “\/\/r". This Flip-Flop is a Rising edge or Falling edge one? (circle) ! Clk CIN CION Q J-K FF K Clk QH K Each div = 5ns Q 12. Using the JK Flip-Flop pictured, write in the tracing for Q in the timing diagram, assume that the time for the output to change after the clock or set is 5ns. Assume setup and hold times ignored. Initial Q=0. Rising edge or Falling edge Clk?_ {2.2} Is the set active Hi or active Lo ? Set Q D ' J-K FF CIK D Set Clk D Q Each div = 5ns 1 1 1 !
