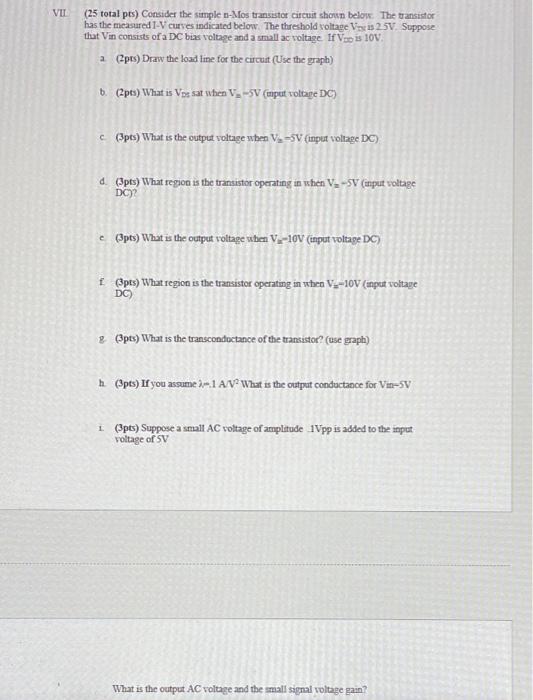

VI (25 total pes) Consider the simple -Mos transistor circuit shown below. The transistor has the measured IV curves indicated below. The threshold voltage Vis is 25V Suppose that Vin consists of a DC bis voltage and a small ac voltage if Vis 10V. a pts) Draw the load line for the circuit (Use the graph) B. (2pcs) What is Vps sat when V. -5V (imput voltage DC) c (3pts) What is the output voltage when V-5V (input voltage DC) d. (Jpts) What region is the transistor operating in when V-SV (input voltage DC) e (3pts) What is the output voltage when V.-10V (input voltage DC) 1 pts) What region is the transistor operating in when V--10V (input voltage DC) (3pts) What is the transconductance of the transistor? (use graph) h (3pts) If you assume -1 A/V What is the output conductance for Vin-5V 1. pts) Suppose a small AC voltage of amplitude 1Vpp is added to the input voltage of SV What is the output AC voltage and the small signal voltage gain?

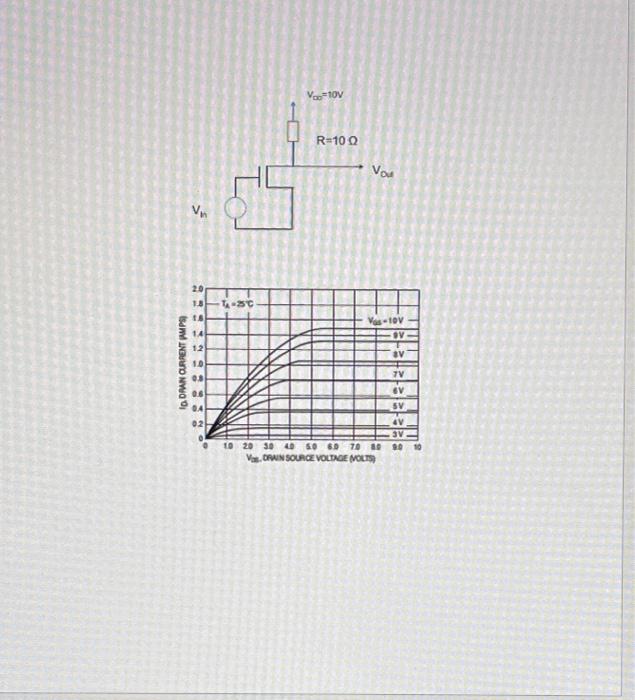

Ve=100 R=100 Vou Vn TESC 20 18 15 14 12 Vestov lo OWN OR RENTAMPS BESH 10 0.8 0.6 YO 021 4V 0 10 20 30 40 50 60 70 10 2010 VaRWIN SOURCE VOLTAGE VOLTS
