3. In a Buck-Boost converter, L = 25uH. It is operating in de steady state under the following conditions: Vin = 12V, D

Post by answerhappygod »

3 In A Buck Boost Converter L 25uh It Is Operating In De Steady State Under The Following Conditions Vin 12v D 1
3 In A Buck Boost Converter L 25uh It Is Operating In De Steady State Under The Following Conditions Vin 12v D 1 (25.29 KiB) Viewed 39 times

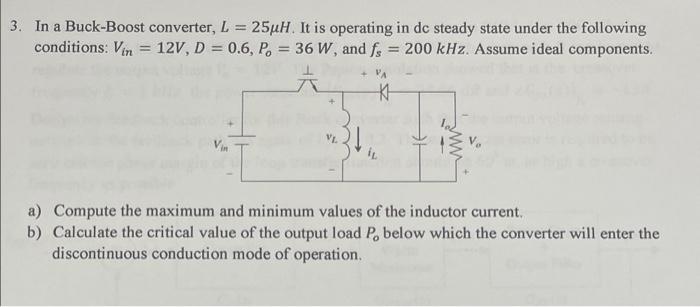

3. In a Buck-Boost converter, L = 25uH. It is operating in de steady state under the following conditions: Vin = 12V, D = 0.6, P. = 36 W, and ſo = 200 kHz. Assume ideal components. + VA 조 VE it a) Compute the maximum and minimum values of the inductor current, b) Calculate the critical value of the output load P, below which the converter will enter the discontinuous conduction mode of operation.
