3. In a Buck-Boost converter, L = 25uH. It is operating in de steady state under the following conditions: Vi.. = 12V D

Post by answerhappygod »

3 In A Buck Boost Converter L 25uh It Is Operating In De Steady State Under The Following Conditions Vi 12v D 1
3 In A Buck Boost Converter L 25uh It Is Operating In De Steady State Under The Following Conditions Vi 12v D 1 (46.27 KiB) Viewed 40 times

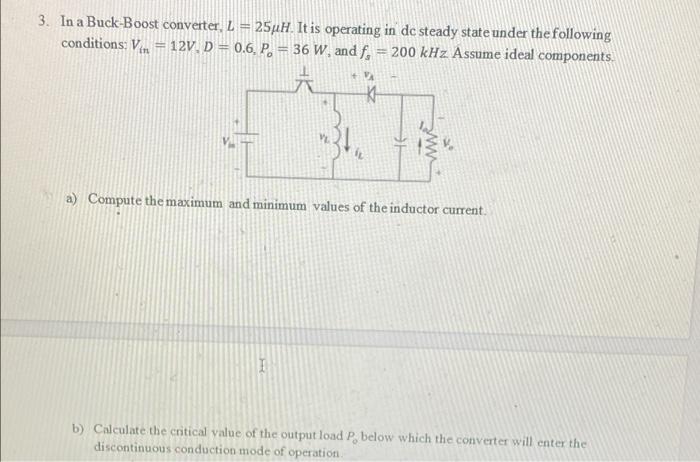

3. In a Buck-Boost converter, L = 25uH. It is operating in de steady state under the following conditions: Vi.. = 12V D = 0.6. P. = 36 W. and f. = 200 kHz Assume ideal components * wwe a) Compute the maximum and minimum values of the inductor current. I b) Calculate the critical value of the output load P, below which the converter will enter the discontinuous conduction mode of operation
