signal and system

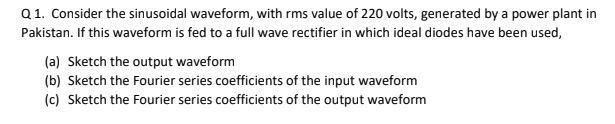

Q1. Consider the sinusoidal waveform, with rms value of 220 volts, generated by a power plant in Pakistan. If this waveform is fed to a full wave rectifier in which ideal diodes have been used, (a) Sketch the output waveform (b) Sketch the Fourier series coefficients of the input waveform (c) Sketch the Fourier series coefficients of the output waveform
