Design a filter that has the signal bandwidth assigned to it.
Vary the SNR from -10dB to 10dB. Plot them. What about the shape of
the CHIRP signals? Can they be observed? How do you think not
having the filter affects the observability of the signals?
Assigned signal: Lineal (đť‘“1 = 400 đť‘“2 = 600)
Please, focus on giving the answer to the problem at
hand.
Design A Filter That Has The Signal Bandwidth Assigned To It Vary The Snr From 10db To 10db Plot Them What About The 1 (46.34 KiB) Viewed 45 times

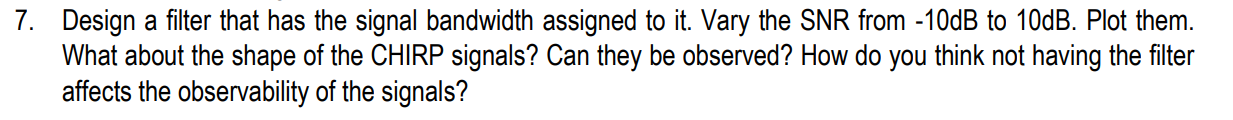

7. Design a filter that has the signal bandwidth assigned to it. Vary the SNR from - 10dB to 10dB. Plot them. What about the shape of the CHIRP signals? Can they be observed? How do you think not having the filter affects the observability of the signals?
a. Group 1: Lineal (f1 = 400 f2 = 600) = =
