Q7. Find Vo assuming ideal op amp and offset diode model (VF = 0.5 V) for the case: (i) when Vin = 6 V, (ii) when Vin =

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Q7. Find Vo assuming ideal op amp and offset diode model (VF = 0.5 V) for the case: (i) when Vin = 6 V, (ii) when Vin =

Post by answerhappygod »

Q7 Find Vo Assuming Ideal Op Amp And Offset Diode Model Vf 0 5 V For The Case I When Vin 6 V Ii When Vin 1
Q7 Find Vo Assuming Ideal Op Amp And Offset Diode Model Vf 0 5 V For The Case I When Vin 6 V Ii When Vin 1 (67.49 KiB) Viewed 41 times

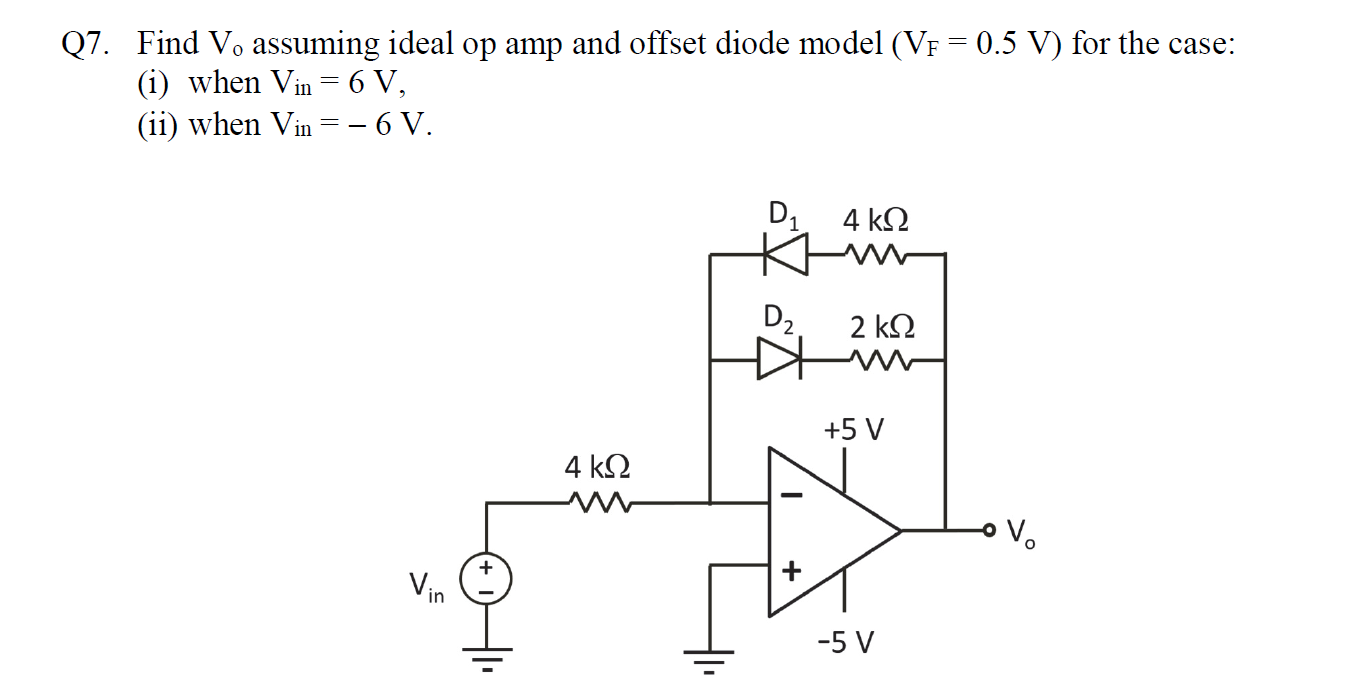

Q7. Find Vo assuming ideal op amp and offset diode model (VF = 0.5 V) for the case: (i) when Vin = 6 V, (ii) when Vin = - 6 V. D1 4k92 D2 2 k92 +5 V 4k92 V. Vin -5 V
