- Consider The Following Process E Z U Z Y Z Gc Z Zoh Gp Z It Is Required That The System Performs With A Damping 1 (154.05 KiB) Viewed 46 times

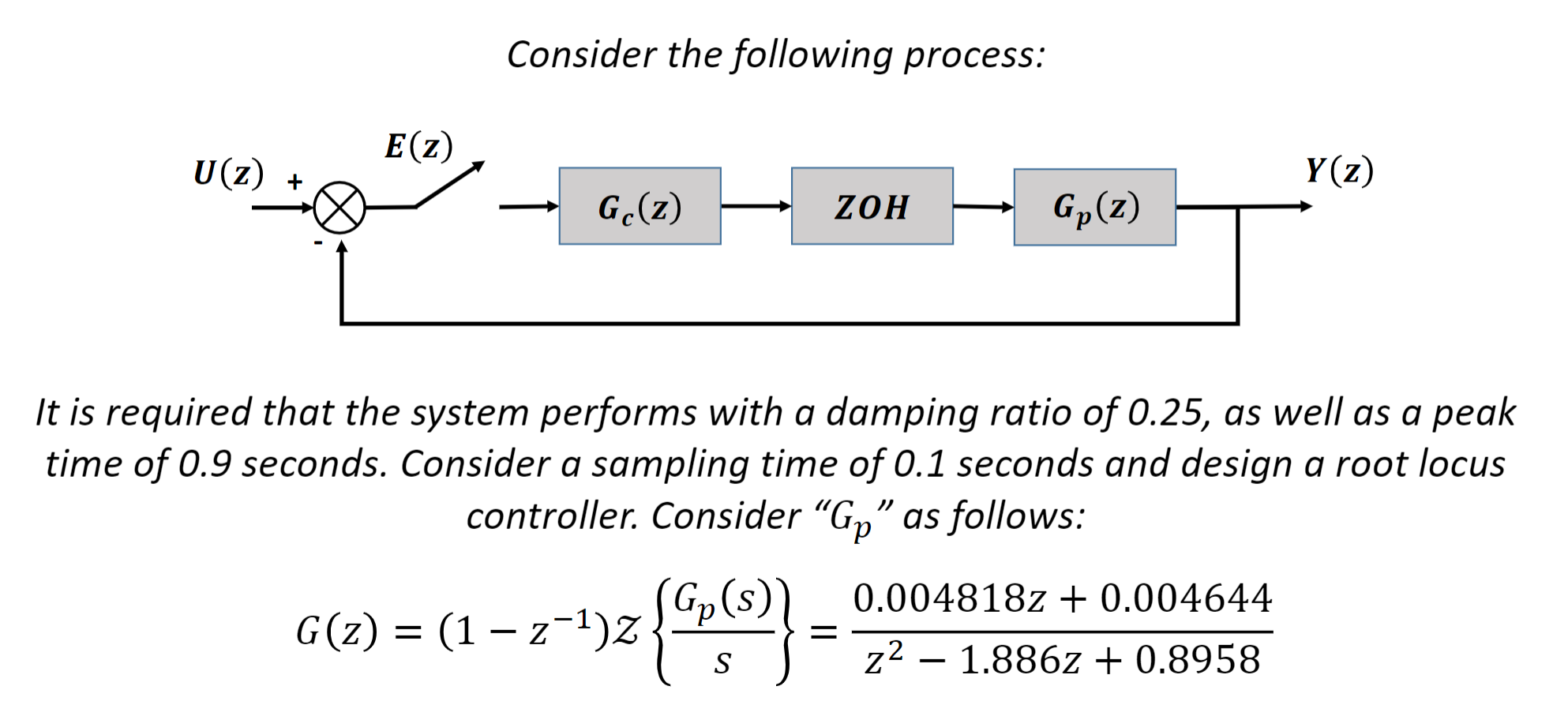

Consider the following process: E(z) U(z) + Y(z) Gc(z) ZOH Gp(z) It is required that the system performs with a damping
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
Consider the following process: E(z) U(z) + Y(z) Gc(z) ZOH Gp(z) It is required that the system performs with a damping
Consider the following process: E(z) U(z) + Y(z) Gc(z) ZOH Gp(z) It is required that the system performs with a damping ratio of 0.25, as well as a peak time of 0.9 seconds. Consider a sampling time of 0.1 seconds and design a root locus controller. Consider “Gp” as follows: (Gp(s) 0.004818z + 0.004644 2 - 1.886z + 0.8958 G(2) = (1 – 2-1){Gp = { = S 22
