Part A Use a 5 nF capacitor to design a series RLC bandpass filter. The center frequency of the filter is 6 kHz, and the

Post by answerhappygod »

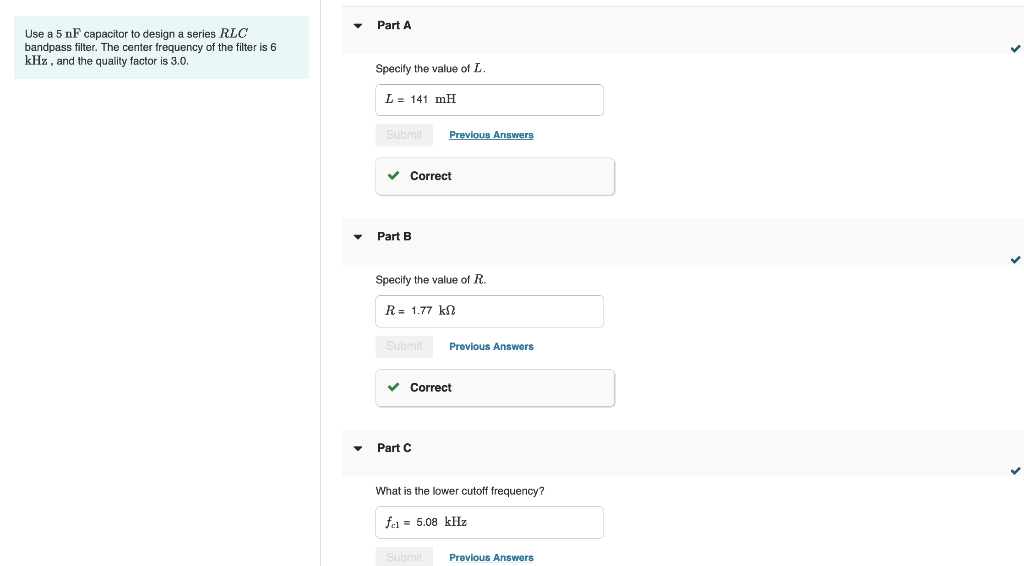

Part A Use A 5 Nf Capacitor To Design A Series Rlc Bandpass Filter The Center Frequency Of The Filter Is 6 Khz And The 1
Part A Use A 5 Nf Capacitor To Design A Series Rlc Bandpass Filter The Center Frequency Of The Filter Is 6 Khz And The 1 (34.66 KiB) Viewed 49 times
Part A Use a 5 nF capacitor to design a series RLC bandpass filter. The center frequency of the filter is 6 kHz, and the quality factor is 3.0. Specify the value of L. L = 141 mH Submit Previous Answers Correct Part B Specify the value of R. R = 1.77 k2 Submit Previous Answers Correct Part C What is the lower cutoff frequency? fa = 5.08 kHz Submi Previous Answers

Correct Use a 5 nF capacitor to design a series RLC bandpass filter. The center frequency of the filter is 6 kHz, and the quality factor is 3.0. Part D What is the upper cutoff frequency in kilohertz? f2 = 7.08 kHz Submit Previous Answers ✓ Correct Part E What is the bandwidth of the filter? Η ΑΣΦ 8 = kHz Submit Previous Answers Request Answer X Incorrect; Try Again; 3 attempts remaining
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
