13. Consider + VR (t) - + V (t) R L + с + Vc (t) Vs (t) i(t)=1m cos(ot) A For R = 100 2, L = 10 H, C = 10 mF and i(t) =
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
13. Consider + VR (t) - + V (t) R L + с + Vc (t) Vs (t) i(t)=1m cos(ot) A For R = 100 2, L = 10 H, C = 10 mF and i(t) =

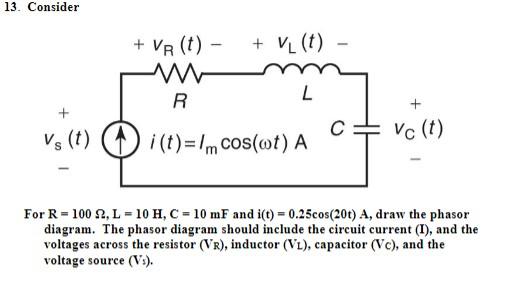

13. Consider + VR (t) - + V (t) R L + с + Vc (t) Vs (t) i(t)=1m cos(ot) A For R = 100 2, L = 10 H, C = 10 mF and i(t) = 0.25cos(20) A, draw the phasor diagram. The phasor diagram should include the circuit current (I), and the voltages across the resistor (Vr), inductor (VL), capacitor (Vc), and the voltage source (V).
