Q3 (35 pts) The current source in Fig. 3 is given as i(t) =8cos ( 200 000t) Amper. a) Convert the current source to volt

[answerhappygod]

Q3 35 Pts The Current Source In Fig 3 Is Given As I T 8cos 200 000t Amper A Convert The Current Source To Volt 1 (47.52 KiB) Viewed 51 times

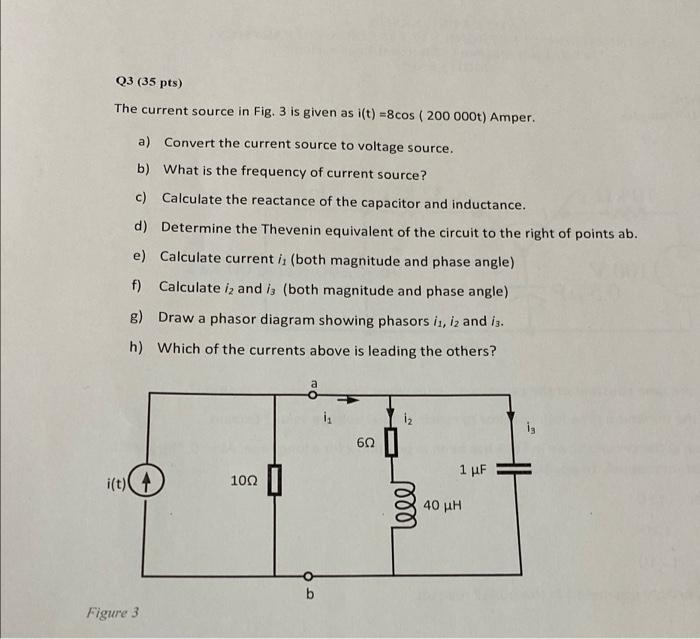

Q3 (35 pts) The current source in Fig. 3 is given as i(t) =8cos ( 200 000t) Amper. a) Convert the current source to voltage source. b) What is the frequency of current source? c) Calculate the reactance of the capacitor and inductance. d) Determine the Thevenin equivalent of the circuit to the right of points ab. e) Calculate current is (both magnitude and phase angle) f) Calculate iz and is (both magnitude and phase angle) g) Draw a phasor diagram showing phasors is, iz and 13. h) Which of the currents above is leading the others? a iz iz is 60 1 AF i(t) 1002 le 40 μΗ b Figure 3
