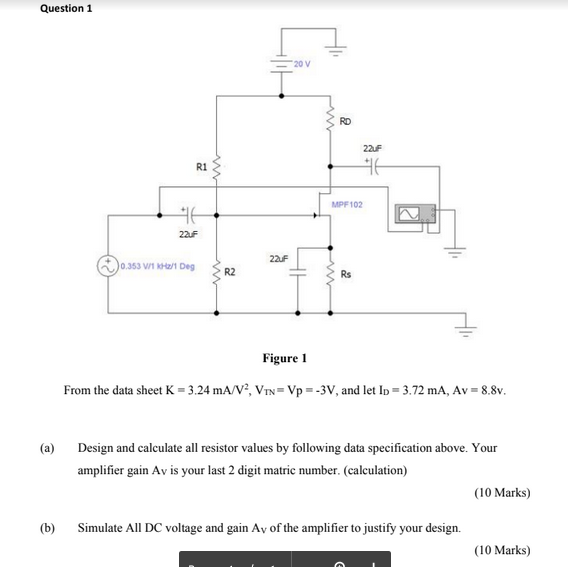

Question 1 20 V RD 22UF R1 16 MPF102 16 22UF 22uF 0.363 V/1 Des R2 Rs w Figure 1 From the data sheet K = 3.24 mA/V?, Von=Vp=-3V, and let Ip = 3.72 mA, Av = 8.8v. (a) Design and calculate all resistor values by following data specification above. Your amplifier gain Ay is your last 2 digit matric number. (calculation) (10 Marks) (b) Simulate All DC voltage and gain Ay of the amplifier to justify your design. (10 Marks)
