Using 555 timer circuit. Design resistance (R), if an output pulse-width of 1.1-ms is using a10 uF capacitor. (b) Identi

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Using 555 timer circuit. Design resistance (R), if an output pulse-width of 1.1-ms is using a10 uF capacitor. (b) Identi

Post by answerhappygod »

Using 555 Timer Circuit Design Resistance R If An Output Pulse Width Of 1 1 Ms Is Using A10 Uf Capacitor B Identi 1
Using 555 Timer Circuit Design Resistance R If An Output Pulse Width Of 1 1 Ms Is Using A10 Uf Capacitor B Identi 1 (62.47 KiB) Viewed 89 times
I need b part solution.

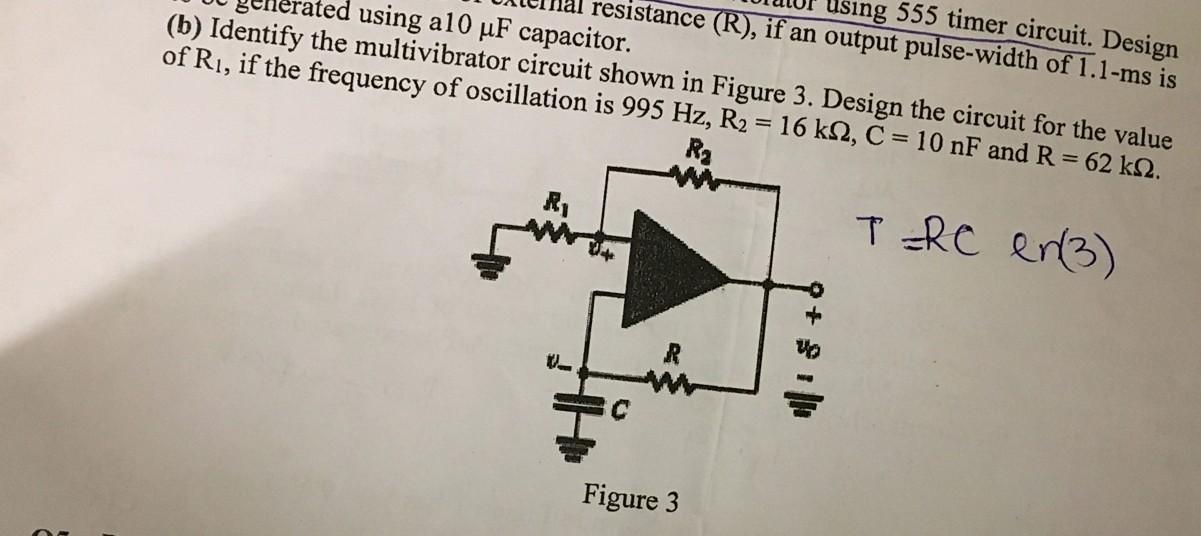

Using 555 timer circuit. Design resistance (R), if an output pulse-width of 1.1-ms is using a10 uF capacitor. (b) Identify the multivibrator circuit shown in Figure 3. Design the circuit for the value of R1, if the frequency of oscillation is 995 Hz, R2 = 16 k2, C = 10 nF and R = 62 k12. R2 R TERC en(3) = R Figure 3
