V1200 r.p.m. short shunt cumulatively compound DC generator has a brush contact e of 4V, a series field winding resistan

[answerhappygod]

V1200 r.p.m. short shunt cumulatively compound DC generator has a brush contact e of 4V, a series field winding resistance of 0.05 , a shunt field winding resistance of 125 and armature resistance of 0.1 2. The armature copper losses is 270.4 W, the copper losses in ge -shunt field circuit is 500 W and the total rotational losses is 3 kW. Use the given information

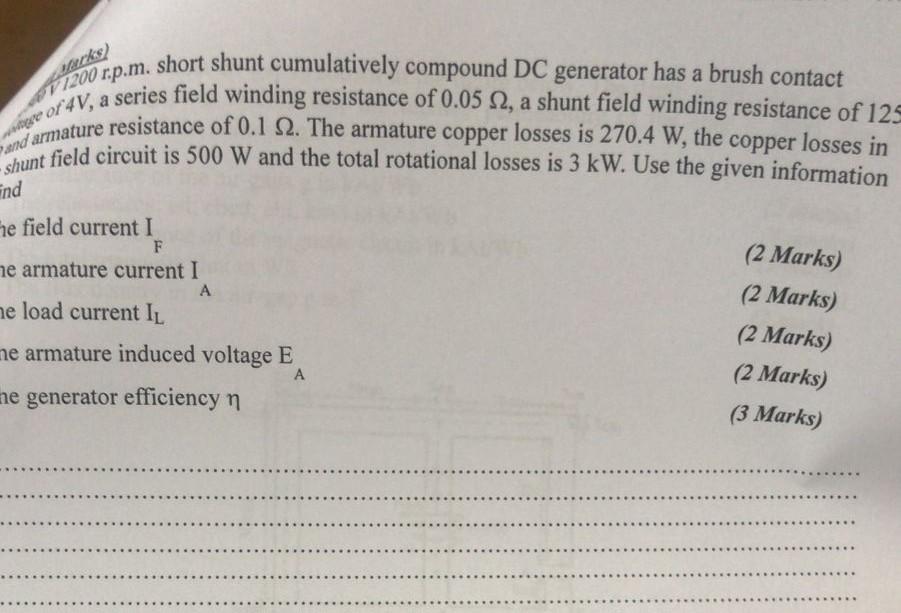

V1200 R P M Short Shunt Cumulatively Compound Dc Generator Has A Brush Contact E Of 4v A Series Field Winding Resistan 1 (63.95 KiB) Viewed 54 times

arks V 1200 r.p.m. short shunt cumulatively compound DC generator has a brush contact and armature resistance of 0.1 S2. The armature copper losses is 270.4 W, the copper losses in wage or 4V, a series field winding resistance of 0.05 12, a shunt field winding resistance of 125 -shunt field circuit is 500 W and the total rotational losses is 3 kW. Use the given information ind he field current I F ne armature current I A he load current IL ne armature induced voltage E А ne generator efficiency n (2 Marks) (2 Marks) (2 Marks) (2 Marks) (3 Marks)
